Safety Vehicle Speed Warning System Intelligent Radar Detection

Name: Safety Vehicle Speed Warning System Intelligent Radar Detection
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-7168D
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO 9001

Model Number: SMC-7168D

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Carton+wooden box packaging

Delivery Time: 1-2 days

Payment Terms: L/C,T/T

Supply Ability: 10 psc per day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Safety Vehicle Speed Warning System, Speed Warning System Intelligent, Radar Detection Speed Warning System


Voltage:	DC10~30V	Working Width Range:	0.2m~4m
Working Distance Range:	0.2m~10m	Detection Working Height:	>(h-20)cm
Number Of Radars:	Front 1 Back 1	Radar Detection Range:	20m

Voltage:	DC10~30V
Working Width Range:	0.2m~4m
Working Distance Range:	0.2m~10m
Detection Working Height:	>(h-20)cm
Number Of Radars:	Front 1 Back 1
Radar Detection Range:	20m

Safety Vehicle Speed Warning System Intelligent Radar Detection

Product Overview

This intelligent safety driving assistance system calculates distance and lateral deviation data, providing drivers with advanced warnings of potential hazards. When necessary, the system can actively engage braking to significantly enhance driving safety. Ideal for construction sites and large mechanical equipment applications.

System Composition

The system integrates five functional components: radar detection, warning alerts, auxiliary braking, human-machine interface, and equipment operation monitoring. Radar sensors installed at vehicle front/rear detect objects within preset ranges, with system calculations triggering driver alerts or automatic interventions to establish comprehensive safety protection.

Key Features

Customizable safety zones, alarm distances, and speed parameters for diverse working conditions
Intuitive touchscreen interface requiring minimal operator training
External LED display for configurable safety messages and company branding
Robust dustproof/waterproof construction suitable for harsh environments
Compatibility with domestic and international construction machinery brands

System Components

Radar Detection: Millimeter-wave sensors provide accurate distance/speed measurement with excellent dust/smoke penetration, operating effectively in most weather conditions.

Warning System: Configurable 5-level safety alerts combining distance/speed parameters with LED displays, buzzers, and in-cab warnings.

Auxiliary Braking: Three-stage intervention (stop vibration → stop movement → brake) for vibratory rollers, with dual-brake capability for special vehicles.

Human-Machine Interface: Touchscreen controls for detection ranges, warning messages, brake settings, and time calibration.

Operation Monitoring: Tracks equipment usage with daily (10 records max) and cumulative operation logs, including administrator access controls.

Technical Specifications

Parameter	Value	Notes
Voltage	DC10~30V
Working width range	0.2m~4m	Independent front/rear/left/right settings
Working distance range	0.2m~10m	Hierarchical alert configuration
Detection height	>(h-20)cm	At 2m distance (h = radar installation height)
Radar count	Front 1 + Rear 1	Integrated LED display
Radar detection range	20m
Transverse scatter angle	120°
Longitudinal scatter angle	14°

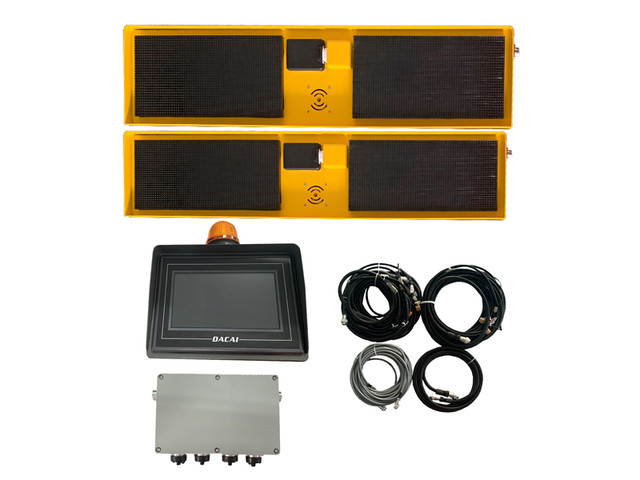

Standard Configuration

Component	Quantity	Description
10-inch HD display	1
Control junction box	1	6 ports
Radar sensor (with LED/buzzer)	2	Dual-screen alternating flash display
5-core radar cable	2	5m length
6-core power cord	1	2.5m length
7-core brake line	1	Brake line 6m, retreat line 8m, walking line 6m
8-core vibrating wire	1	5.6m length
12-core communication line	1	3m length
Accessory screws	1 set

Installation Examples
