360 Anti Collision Avoidance System For Road Rollers And Loaders
360° Anti-collision System for Road Rollers and Loaders
The 360° anti-collision system is a very important safety guarantee technology for construction machinery such as road rollers and loaders.
For road rollers:
- Since road rollers usually have a slow speed during operation, but the operating environment may be relatively complex, such as frequent movement of personnel at the construction site, and cross-operation of other construction equipment. The 360° anti-collision system enables the driver to have a comprehensive understanding of the situation around the vehicle body to avoid running over personnel or colliding with other equipment.
- For example, in road construction projects, road rollers will operate on the newly paved road surface, and there may be workers conducting marking construction or placing traffic signs around. The 360° anti-collision system can detect these personnel and objects in time to avoid accidents.
- Another example is that at a large construction site, multiple road rollers operate simultaneously. The system can help the driver accurately judge the distance from other road rollers in narrow areas to prevent mutual collisions.
For loaders:
- Loaders have diverse working scenarios and may frequently shuttle in places such as mines, construction sites, and freight yards, and the operating environment is complex and changeable.
- For instance, in mines, the roads are rough, the line of sight is blocked, and blind spots are prone to occur. The 360° anti-collision system can help the driver detect obstacles hidden in the blind spots in advance, such as rocks and mining carts.
- At construction sites, loaders need to frequently load and unload materials, and there may be workers and other vehicles around. This system can effectively prevent loaders from colliding with them when turning or reversing.
In conclusion, the 360° anti-collision system for road rollers and loaders can significantly improve the operational safety of these two types of construction machinery, reduce the accident rate, protect the lives and property of personnel, and also help improve work efficiency and reduce project delays and economic losses caused by accidents.
Technical parameter
| |
| item |
parameter |
remarks |
| supply voltage |
DC10~30V |
|
| Working width range |
0.2m~4m |
Front, back, left, and right can be independently set separately |
| Working distance range |
0.2m~10m |
Warning settings can be graded |
| Detecting working height |
＞(h-20)cm |
At a distance of 2 meters, hcm is the installation height of the radar above the ground |
| Number of radars |
Front 1, back 1 |
Integrated LED display |
| Radar detection range |
20m |
|
| Measure the lateral scattering angle |
120° |
|
| Measure longitudinal scattering angle |
14° |
|
Main components and characteristics
1High precision ranging radar
(1) The induction radar adopts a wide-angle multi-target detection radar, with a measurement and control distance of up to 20 meters.
(2) 32 × 64 high dot matrix LED outdoor display screen, can keep on and flash screen prompts, with clear display.
(3) Integrated buzzer provides high decibel sound alarm.
(4) High definition 720P front and rear cameras provide video monitoring.
(5) Overall packaging, not afraid of rain, but not soaked.

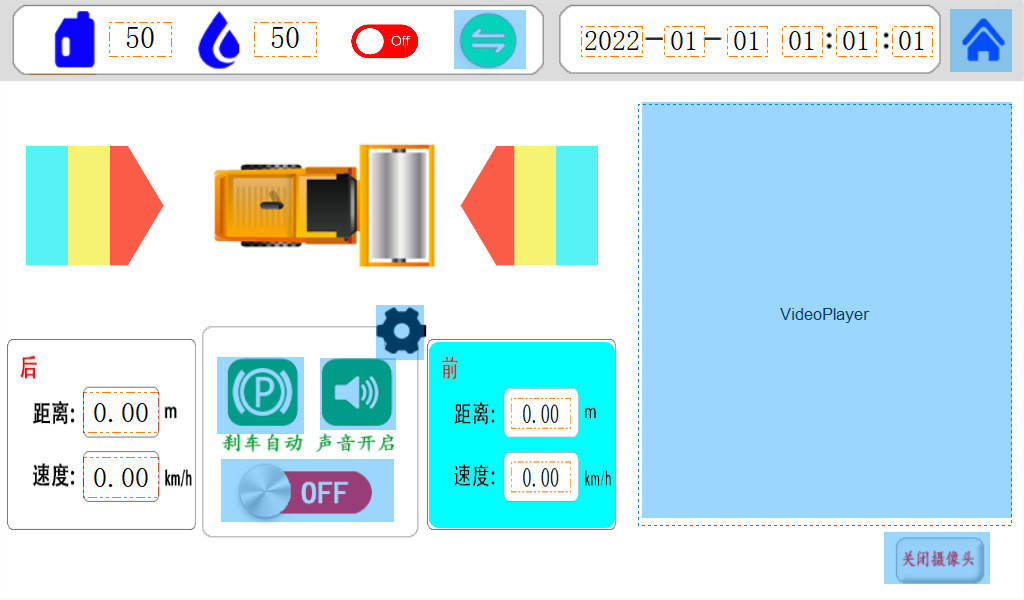

2 High definition color screen controller
(1) 10.1-inch neutral high-definition color screen, sensitive touch and clear display.
(2) Real time display of working parameters;
(3) Can set detection and alarm parameters;
(4) Built in software, upgradable, customizable.
3 Intelligent HD AI Camera
(1) In addition to the front and rear radar display images, add two segmented images on the left and right sides.
(2) Three screens can be zoomed in and switched through the buttons on the side of the controller.
(3) Display the last image mode every time the device is turned on.
