Stable Paver Material Leveling With Ultrasonic Sensor Slipform Paver Parts

Name: Stable Paver Material Leveling With Ultrasonic Sensor Slipform Paver Parts
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-TYP64F
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Siming

Certification: ISO-9001

Model Number: SMC-TYP64F

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: wooden

Delivery Time: 1-2 days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                Stable Paver Material Leveling, Ultrasonic Sensor Slipform Paver Parts, Ultrasonic Sensor paver machine parts


Power Supply Voltage:	12~35V	Product Type:	Paver Parts
Warranty:	1 Year	Working Temperature:	-10℃～+75℃
Compatibility:	Fits VOGELE 2100-C/2100-2 Pavers

Power Supply Voltage:	12~35V
Product Type:	Paver Parts
Warranty:	1 Year
Working Temperature:	-10℃～+75℃
Compatibility:	Fits VOGELE 2100-C/2100-2 Pavers

Stable Paver Material Leveling With Ultrasonic Sensor Slipform Paver Parts

Easy and Stable Paver Material Leveling with Ultrasonic Sensor Slipform Paver Parts

product description

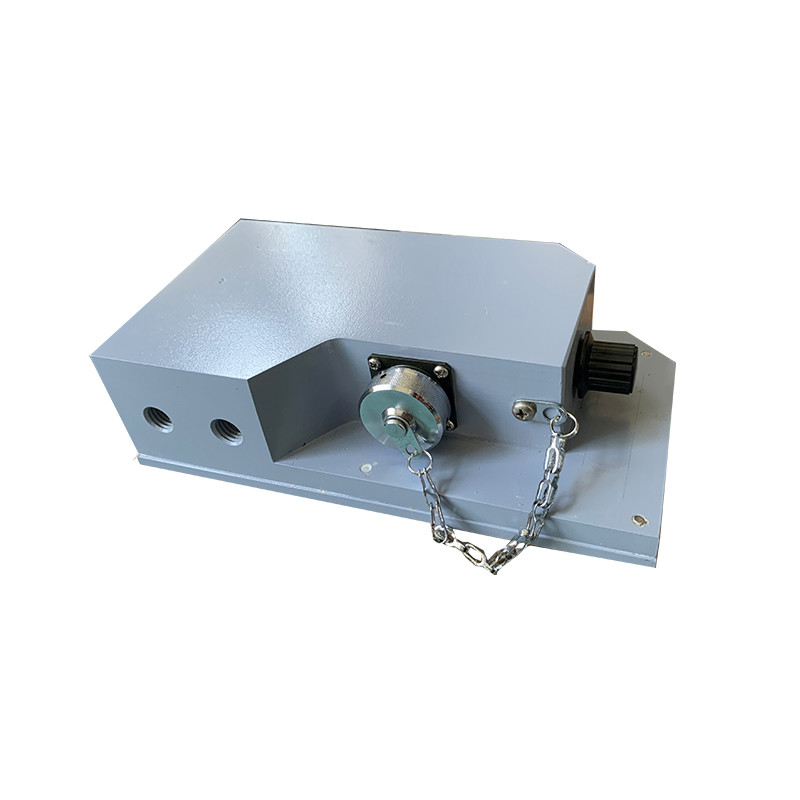

SMC-TYP64F ultrasonic material level sensor is suitable for VOGELE2100-C, VOGELE2100-2 paver

Controlling the distribution of paver material can make the paver material evenly distributed to both sides of the screed

Non-contact measurement, easy and stable leveling

Reverse voltage, over current protection

The main function of the Vogler circular level gauge is to monitor the position of materials in the paver hopper in real time.
The paver needs to ensure that the supply of materials matches the paving progress during operation. The level gauge uses ultrasonic technology to emit sonar and measure the distance of the material, thereby determining the amount of material. The detected information will be fed back to the control system of the paver, in order to control the agitator and other components of the paver, thereby achieving automatic adjustment of the feeding efficiency of the agitator shaft to match the on-site paving efficiency. This can ensure the continuous and stable operation of the paver, improve construction efficiency and quality, while avoiding production interruptions or resource waste caused by material shortages or surpluses.

Technical Parameters

Power supply voltage	12~35V
Working temperature	-10℃～+75℃
Output voltage	1.95V～6.30V
Resolution	6.6mV/mm
