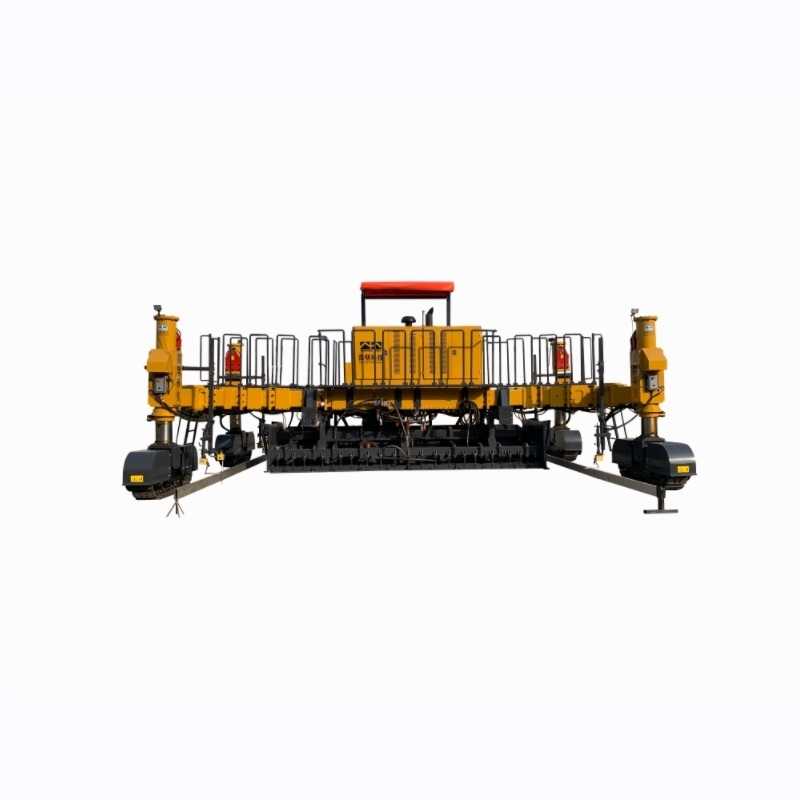

SMC-6600 Slipform Paver 3500-6000mm Paving Width High Power Engine

Product Details

Place of Origin: Jiangsu, China

Brand Name: Siming

Certification: ISO9001/CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $359,000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Slipform paver high power engine, Slipform paver 3500-6000mm width, SMC-6600 slipform paver machine


Weight:	28200 Kg	Paving Thickness:	0-450mm
Paving Width:	3500-6000mm	Driving Speed:	0-1.5 Km/h
Paving Speed:	0-7.5 M/min	Flatness:	±3 Mm/3m
Vibrator Brand:	WYCO	Vibrator Interface:	16
Vibrator Frequency:	0-167 Hz	Fuel Tank:	370L
Water Tank:	400L（standard）+140L*4(optional)	Engine:	Shangchai SC7H240G4
Rate Power:	177Kw/2200rpm	Emission Standard:	Phase Ⅳ(Phase Ⅲ Optional)
Transport Size:	1174028003220 Mm

Weight:	28200 Kg
Paving Thickness:	0-450mm
Paving Width:	3500-6000mm
Driving Speed:	0-1.5 Km/h
Paving Speed:	0-7.5 M/min
Flatness:	±3 Mm/3m
Vibrator Brand:	WYCO
Vibrator Interface:	16
Vibrator Frequency:	0-167 Hz
Fuel Tank:	370L
Water Tank:	400L（standard）+140L*4(optional)
Engine:	Shangchai SC7H240G4
Rate Power:	177Kw/2200rpm
Emission Standard:	Phase Ⅳ(Phase Ⅲ Optional)
Transport Size:	1174028003220 Mm

SMC-6600 Slipform Paver 3500-6000mm Paving Width High Power Engine

SMC-6600 Four Track Slipform Paver

New condition concrete slipform canal paver with high-performance core engine component, designed for precision paving in demanding construction environments.

Key Specifications

Condition	New
Core Components	Engine
Weight	28,200 kg
Warranty	1 Year (3 years for core components)
Paving Thickness	0-450mm
Paving Width	3500-6000mm
Driving Speed	0-1.5 km/h
Paving Speed	0-7.5 m/min
Applicable Industries	Airport runways, highways, railways

Application Conditions

The SMC-6600 cement concrete slip form paver is a multi-purpose construction equipment developed for various grades of highways, high-speed railway subgrade, airport and rail transit concrete base construction. It replaces traditional processes while significantly improving construction quality and efficiency.

Technical Specifications

Paving width	3500-6000 mm
Paving height	0-450 mm
Flatness	±3 mm/3m
Paving Speed	0-7.5 m/min
Driving speed	0-1.5 km/h
Vibrator brand	WYCO
Vibrator interface	16
Vibrator frequency	0-167 Hz
Fuel tank	370L
Water tank	400L (standard) + 140L×4 (optional)
Engine	Shangchai SC7H240G4
Rate power	177Kw/2200rpm
Emission standard	Phase Ⅳ (Phase Ⅲ optional)
Feed system	Spiral
Weight	28.2t
Transport size (L×W×H)	11740×2800×3220 mm

Functional Features

Power System

Water-cooled engine for powerful and reliable operation
Parallel three-in-one large-sized radiator with forced air cooling for optimal heat dissipation

Hydraulic System

Four pump load sense hydraulic system from international brands
High quality filters on pump inlet and outlet ports

Electronic Control System

Color graphic and text display with fault diagnosis, working status, and alarm
Electronic automatic control for steering, grade, and slope with CAN-bus communication
Four longitudinal slope sensors and two steering sensors

Traveling Device

Four-track hydraulic drive for high traction
Load sense hydraulic drive minimizes system heating

Vibration Compaction System

High quality hydraulic vibrator with square head shell
16 standard vibration circuits (additional 6 circuits optional) with stepless frequency adjustment (0-167Hz)

Concrete Spreading System

Direct unloading from dump truck with excavator spreading
Two hydraulic driven spreading augers with independent control and infinitely adjustable revolution

Water System

High pressure washer with water gun
Standard 400L water tank with optional four 130L tanks

Tamper Bar Device

Hydraulic driven with stepless frequency regulation
Creates surface slurry layer by pushing down surface coarse aggregate

Frequently Asked Questions

What kind of payment terms can be accepted?

L/C, T/T, D/A, D/P, Western Union can be accepted.

What certificates are available for the machinery?

We have ISO certification for our equipment.

What is the delivery time?

7-30 days after receiving the deposit.

What is the warranty period?

12 months after shipment.

What is the minimum order quantity?

The MOQ is 1 unit.
