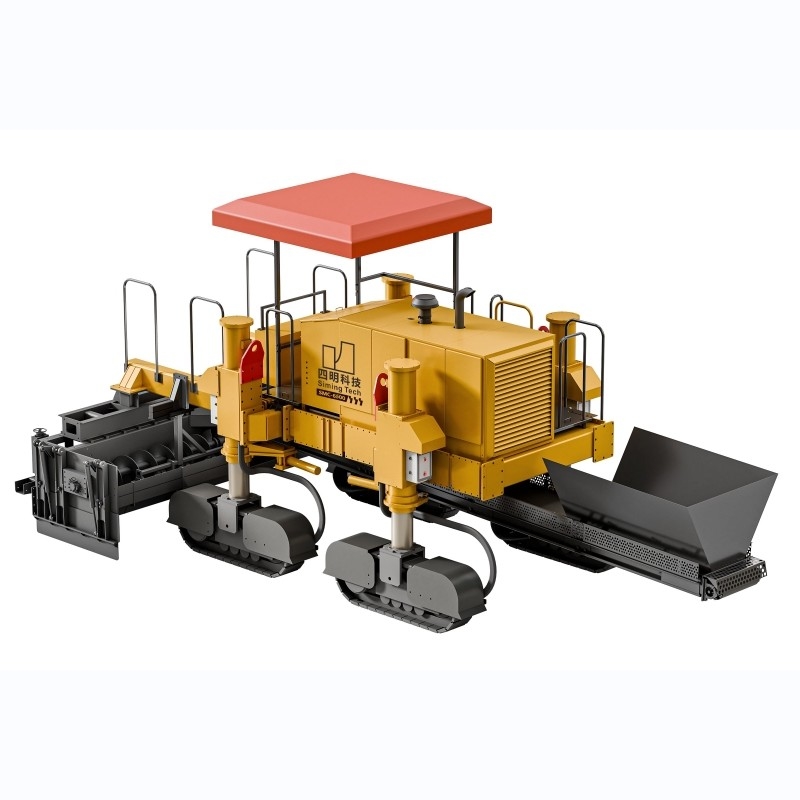

4.5m Negative Gap Construction Slipform Paver With Four Elongated Tracks

Name: 4.5m Negative Gap Construction Slipform Paver With Four Elongated Tracks
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-6500C
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO-9001

Model Number: SMC-6500C

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Container

Delivery Time: 30-45 days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                4.5m Negative Gap Construction Slipform Paver, Four Elongated Tracks Slipform Paver, 4.5m slipform paver machine


Paving Width:	2500-4500 Mm	Grade Control:	Automatic
Warranty:	1 Year	Paving Depth:	0-15 M/min
Travel Speed:	0-1.8 Km/h	Weight:	19500 Kg
Vibration Frequency:	0-167 Hz	Applicable Industries:	Construction Works
Fuel Capacity:	320L

Paving Width:	2500-4500 Mm
Grade Control:	Automatic
Warranty:	1 Year
Paving Depth:	0-15 M/min
Travel Speed:	0-1.8 Km/h
Weight:	19500 Kg
Vibration Frequency:	0-167 Hz
Applicable Industries:	Construction Works
Fuel Capacity:	320L

4.5m Negative Gap Construction Slipform Paver With Four Elongated Tracks

4.5m Negative Gap Construction Slipform Paver with Four Elongated Tracks

Application conditions:

SMC-6500C is a rear sliding mode paver, which adopts full hydraulic drive and four track walking, with stronger driving force to achieve negative clearance construction. It is mainly used for paving on rural roads and shoulder less roads.

Functional features:

1. Shangchai 6-cylinder engine, electric preheating, high power, suitable for construction in high-altitude areas; High pressure common rail control, compliant with National III emission standards (optional for National IV).

2. The advanced industrial CAN bus communication system is used between the control panel and the main control box, which simplifies and ensures reliability of the system.

3. Adopting a user-friendly widescreen LCD display to show the working status of the entire machine, with intuitive and clear fault indications.

4. Full track steering system and full track positioning function, realizing multiple steering modes. Under various working conditions, the machine can quickly position itself, which is simple and efficient.

5. Equipped with an automatic leveling system to ensure the smoothness of the paved road surface and its auxiliary facilities.

6. Equipped with automatic steering function, it creates perfect linearity during the paving process.

7. Equipped with four elongated tracks, effectively enhancing ground adhesion ability.

8. Rear mounted mold for negative gap construction, commonly used for paving on rural roads and shoulder less roads.The high-pressure water gun system is equipped with a flushing high-pressure water gun.

9. Equipped with a 550L large water tank for worry free flushing.

Technical parameters

Paving width	2500-4500 mm
Paving height	0-300 mm
Flatness	±3 mm/3m
Paving Speed	0-15 m/min
Driving speed	0-1.8 km/h
Vibrator brand	WYCO
Vibrator interface	12
Vibrator frequency	0-167 Hz
Frul tank	320L
Water tank	550L
Engine	Shangchai SC4H160.5G4
Rate power	118Kw/2200rpm
Emission standard	Phase Ⅳ(Phase Ⅲ optional)
Feed system	Spiral/belt
Weight	19.5 t
Transport size(LWH)	750030002800 mm
