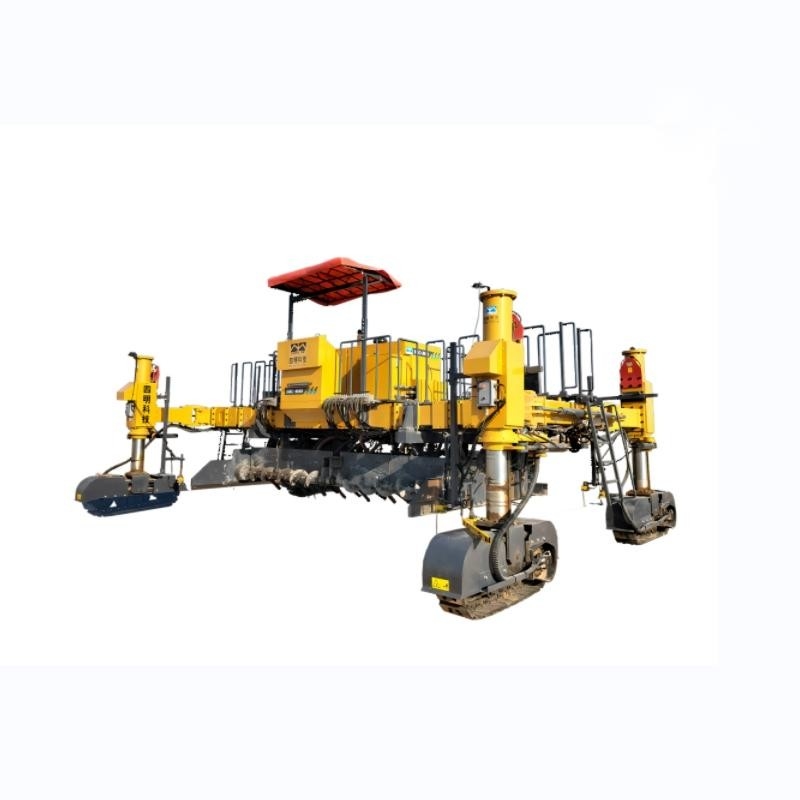

Airports 6 Meter Slipform Paver Machine Slip Form Concrete Machine

Name: Airports 6 Meter Slipform Paver Machine Slip Form Concrete Machine
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-6600
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-6600

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: shipping

Delivery Time: 30-45 days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                6 Meter Slipform Paver Machine, Airports Slipform Paver Machine, 6 Meter Slip Form Concrete Machine


Diesel Tank Volume:	370 L	Travel Speed:	0-1.5 Km/h
Max Paving Width:	6 M	Condition:	New
Machinery Test Report:	Provided	Engine Power:	177 KW@2200rpm
Warranty:	1 Year	MAX Paving Thickness:	480 Mm
Style:	Track	Screed Type:	Hydraulic
Power Source:	Diesel	Control System:	Automatic
Application:	Road Construction

Diesel Tank Volume:	370 L
Travel Speed:	0-1.5 Km/h
Max Paving Width:	6 M
Condition:	New
Machinery Test Report:	Provided
Engine Power:	177 KW@2200rpm
Warranty:	1 Year
MAX Paving Thickness:	480 Mm
Style:	Track
Screed Type:	Hydraulic
Power Source:	Diesel
Control System:	Automatic
Application:	Road Construction

Airports 6 Meter Slipform Paver Machine Slip Form Concrete Machine

Customizable 6-meter cement concrete slipform paver for airports, highways, high-speed railway subgrades, and rail transit concrete bases.

Application Conditions

The SMC-6600 cement concrete slip form paver is a multi-purpose construction equipment that replaces traditional processes, significantly improving construction quality and efficiency. It features large power reserve, full electronic control, hydraulic power drive, four crawler walking system, and automatic steering/leveling control to complete vibration, paving, forming, and plastering in one continuous process.

Main Performance and Features

Power System

Water-cooled engine for powerful and reliable operation
Parallel three-in-one large-sized radiator with forced air cooling for excellent heat dissipation

Hydraulic System

Four pump load sense hydraulic system from international brands
High quality filters on pump inlet/outlet ports

Electronic Control System

Color graphic/text display with fault diagnosis, status monitoring, and alarms
Electronic automatic control for steering, grade, and slope via CAN-bus communication
Four longitudinal slope sensors and two steering sensors

Traveling Device

Four-track hydraulic drive with high traction
Load sense hydraulic drive minimizes system heating

Vibration Compaction System

High quality hydraulic vibrator with square head shell
16 standard vibration circuits (6 additional optional) with 0-167Hz stepless frequency adjustment

Concrete Spreading System

Direct unloading from dump trucks with excavator spreading
Two hydraulic driven spreading augers with independent control and adjustable revolution

Water System

High pressure washer with water gun
Standard 400L water tank with optional four 130L tanks

Tamper Bar Device

Hydraulic driven with stepless frequency regulation
Creates surface slurry layer by pushing down coarse aggregate

Technical Parameters

Parameter	Value
Paving Width	3500-6000 mm
Paving Thickness	0-450 mm
Smoothness	±3 (mm/3m)
Paving Speed	0-7.5 m/min
Speed	0-1.5 km/h
Vibrating Circuits	16
Vibrating Frequency	0-167 Hz
Diesel Tank	370 L
Water Tank	400 L (standard) + 140L*4 (optional)
Transport Size (LWH)	1174028003220 mm
Engine Model	SC7H240 G4
Power	177 Kw @ 2200rpm
Emission	Stage 4

Project Cases
