SMC-6800 Cement Slip Form Paver Customizable Slip Form Machine

Name: SMC-6800 Cement Slip Form Paver Customizable Slip Form Machine
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-6800
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-6800

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: shipping

Delivery Time: 30-45 days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Cement Slip Form Paver, SMC-6800 Slip Form Paver, Customizable Slip Form Machine


Diesel Tank Volume:	370 L	Travel Speed:	0-1.5 Km/h
Max Paving Width:	8 M	Condition:	New
Showroom Location:	None	Machinery Test Report:	Provided
Engine Power:	177 KW@2200rpm	Warranty:	1 Year
MAX Paving Thickness:	480 Mm	Style:	Track
Screed Type:	Hydraulic	Power Source:	Diesel
Control System:	Automatic	Application:	Road Construction

Diesel Tank Volume:	370 L
Travel Speed:	0-1.5 Km/h
Max Paving Width:	8 M
Condition:	New
Showroom Location:	None
Machinery Test Report:	Provided
Engine Power:	177 KW@2200rpm
Warranty:	1 Year
MAX Paving Thickness:	480 Mm
Style:	Track
Screed Type:	Hydraulic
Power Source:	Diesel
Control System:	Automatic
Application:	Road Construction

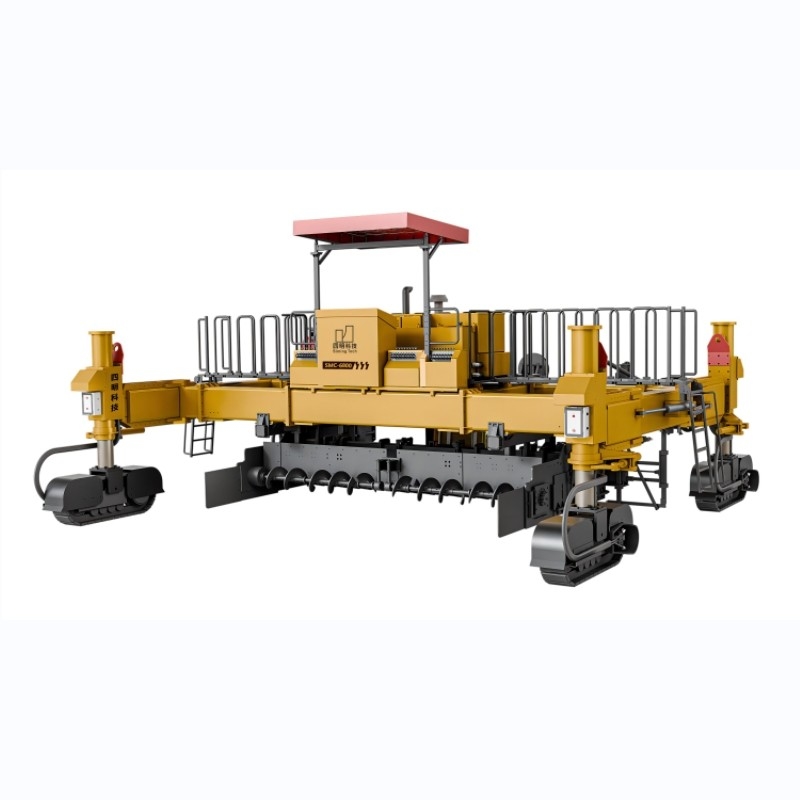

SMC-6800 Cement Slip Form Paver Customizable Slip Form Machine

Customizable SMC-6800 Cement Slipform Paver for Various Construction Needs

The SMC-6800 cement concrete slipform paver is a multifunctional cement concrete construction equipment independently developed by our company, widely used in the construction field of cement concrete structures such as various levels of roads, airports, agricultural irrigation channels, railway concrete bases and bridge bases.

This machine has a large power reserve, full electronic control, full hydraulic power drive, four-track travel, and is equipped with an automatic steering and automatic leveling control system. It can complete the process of material feeding, vibrating compaction, tampering and slurry lifting, oscillating beam leveling and super smoother troweling of cement concrete structures in one go, replacing traditional processes and greatly improving the paving speed and construction quality of cement concrete structures.

The SMC-6800 four-track cement slipform paver has won the trust and first choice of customers with high cost-effectiveness based on advanced technology and superior performance guarantee. Within the working range of 8 meters wide and 45 centimeters thick, more optional accessories can be provided to meet special working conditions and mold methods, providing customers with a competitive advantage.

Main Performance and Features

Power System

Equipped with a water-cooled engine, the power is strong and the work is reliable
Equipped with a large-size radiator, the heat dissipation effect is remarkable

Hydraulic System

Load sensitive hydraulic system, DANFOSS brand
The oil inlet and outlet of the pump are equipped with high-precision filters with a maximum filtration accuracy of 10um

Electrical Control System

Color graphic display on the console display, which integrates fault diagnosis, status display, prompt alarm light functions
Steering, longitudinal slope and transverse slope are electronically controlled automatically, and the sensor and controller adopt CAN bus communication
Standard piping has 2 longitudinal slope sensors, 1 lateral slope sensor and 1 steering sensor

Walking System

Consists of variable pump, hydraulic valve, hydraulic motor, reducer, crawler belt and control system
Two-track drive and four-wheel driven walking, the walking speed is steplessly adjustable

Flushing System

The pressure of the high-pressure flushing system can be set according to the needs, and the conventional pressure is set to 5MPA, which meets the flushing requirements

Feeding System

Use cement mixer truck or excavator to directly discharge the material into the hopper

Vibration Compaction System

U.S. imported vibrator, square shell, hydraulic drive
The standard configuration is 2 vibrating rods, 6 vibrating oil circuits, and the frequency of 0~167Hz is steplessly adjustable

Technical Parameters

Parameter	Value
Paving Width	3500-8000 mm
Paving Thickness	0-450 mm
Smoothness	±3 (mm/3m)
Paving Speed	0-7.5 m/min
Speed	0-1.5 km/h
Vibrating Circuits	16
Vibrating Frequency	0-167 Hz
Diesel Tank	370 L
Water Tank	400 L(standard)+140L*4(optional)
Total length	13740/9640 mm(transportation/work)
Width	2800/7300 mm(transportation/work)
Height	3220/4300 mm(transportation/work)
Engine Model	SC7H240 G4
Power	177 Kw@2200rpm
Emission	stage 4
