Concrete Slipform Paver for Railway & High-Speed Rail Base Construction

Name: Concrete Slipform Paver for Railway & High-Speed Rail Base Construction
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-6800
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-6800

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: shipping

Delivery Time: 30-45 days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                concrete slipform paver for railway construction, slipform paver for high-speed rail base, railway base construction slipform paver


Diesel Tank Volume:	370 L	Travel Speed:	0-25 M/min
Paving Width:	0-8500 Mm	Condition:	New
Engine Power:	194 KW@2200rpm	Paving Thickness:	0-480 Mm
Style:	Track

Diesel Tank Volume:	370 L
Travel Speed:	0-25 M/min
Paving Width:	0-8500 Mm
Condition:	New
Engine Power:	194 KW@2200rpm
Paving Thickness:	0-480 Mm
Style:	Track

Concrete Slipform Paver for Railway & High-Speed Rail Base Construction

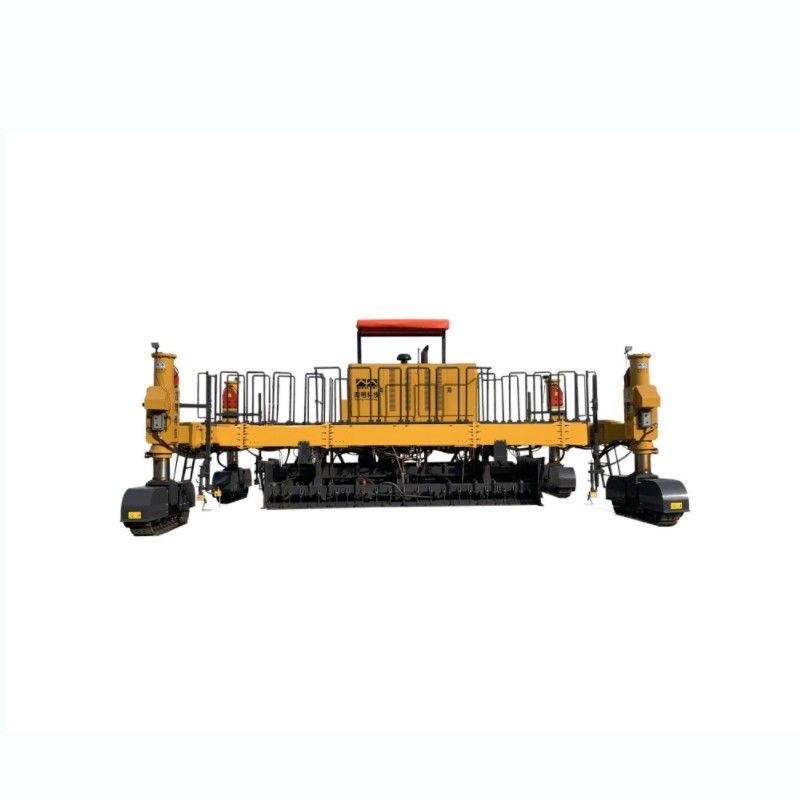

SMC-6800 Concrete Slipform Paver

The SMC-6800 Concrete Slipform Paver is a reliable and efficient solution for railway and high-speed rail base construction, where precision, stability, and consistency are critical. Designed to meet strict engineering standards, this concrete slipform paver delivers uniform concrete layers for railway subgrades and auxiliary structures.

Key Features & Benefits

Four-track hydraulic traveling system for excellent stability on long, linear construction sites
Advanced electronic control system for precise adjustment of paving line, grade, and longitudinal slope
Powerful vibration compaction system ensures dense concrete consolidation and reduces structural voids
Adjustable paving widths and thicknesses to accommodate different railway foundation designs
Integrated construction processes including spreading, vibration, paving, forming, and surface finishing
Significantly improves construction efficiency while minimizing labor input and quality variations

Applications

Typical applications include high-speed railway base layers, track-side concrete structures, cable troughs, and drainage components. Customized configurations available to meet railway project standards in different countries.

Technical Specifications

Parameter	Specification
Paving Width	3500-8500 mm
Paving Thickness	0-480 mm
Smoothness	±3 (mm/3m)
Paving Speed	0-7.5 m/min
Speed	0-1.5 km/h
Vibrating Circuits	24
Vibrating Frequency	0-167 Hz
Diesel Tank	370 L
Water Tank	400 L (standard) + 140L*4 (optional)
Total Length	13740/9640 mm (transportation/work)
Width	2800/10150 mm (transportation/work)
Height	3280/4300 mm (transportation/work)
Engine Model	QSB6.7-C260
Power	194 Kw@2200rpm
Emission	Euro 3/4

Product Dimensions
