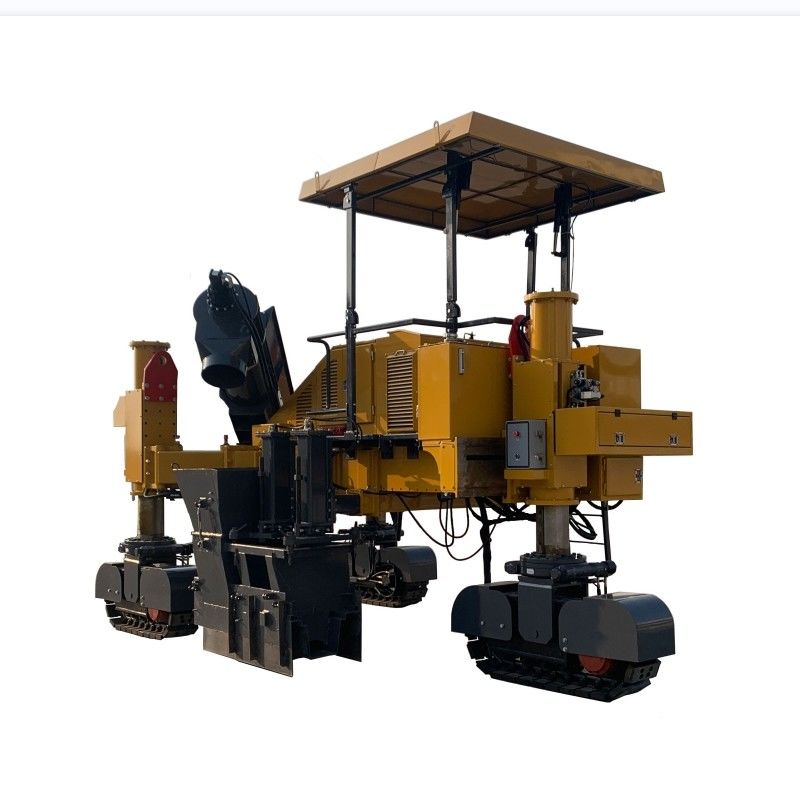

Concrete Slipform Paver for Curb & Gutter Construction

Name: Concrete Slipform Paver for Curb & Gutter Construction
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-5500
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-5500

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: Container shipping

Delivery Time: 30-45 work days

Payment Terms: T/T,

Supply Ability: 1 unit a month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                concrete slipform paver for curb, slipform paver for gutter construction, curb and gutter slipform paver


Max Paving Width:	3m	Max Paving Height:	1800 Mm
Engine Power:	118 KW	Model:	Customized
Paving Speed:	0-10 M/min	Travel Speed:	0-2 Km/h
Fuel Tank Capacity:	230 L	Overall Dimensions:	7000 X 2250 X 2860 Mm
Operating Weight:	15,000 Kg	Condition:	New
Grade Control System:	Automatic

Max Paving Width:	3m
Max Paving Height:	1800 Mm
Engine Power:	118 KW
Model:	Customized
Paving Speed:	0-10 M/min
Travel Speed:	0-2 Km/h
Fuel Tank Capacity:	230 L
Overall Dimensions:	7000 X 2250 X 2860 Mm
Operating Weight:	15,000 Kg
Condition:	New
Grade Control System:	Automatic

Concrete Slipform Paver for Curb & Gutter Construction

SMC-5500 Concrete Slipform Paver for Curb & Gutter Construction

The SMC-5500 Concrete Slipform Paver delivers exceptional precision, stability, and continuous performance for curb and gutter construction projects. Engineered for municipal infrastructure applications, this advanced paving machine ensures accurate shaping and smooth finishing of concrete curbs, gutters, and edge structures.

Featuring a fully hydraulic drive system with advanced electronic controls, the SMC-5500 maintains consistent paving quality across complex job sites. The integrated automatic steering and leveling system provides precise control over line, grade, and slope, ensuring uniform curb profiles and clean edges. Customizable molds allow adaptation to various municipal specifications.

The powerful vibration compaction system ensures optimal concrete consolidation, minimizing voids and enhancing long-term durability. These advanced features make the SMC-5500 slipform paver a reliable solution for high-standard curb construction requirements.

Key Applications

Urban road curbs and drainage gutters
Sidewalk edges and median dividers
Municipal infrastructure projects
Road construction and rehabilitation

The machine's integrated workflow—combining spreading, vibration, forming, and finishing in a single pass—significantly improves construction efficiency while reducing labor requirements.

Technical Specifications

Basic Performance Parameters

Max paving width	cm	300
Max paving height	cm	180
Work speed	m/min	0-10
Driving speed	km/h	0-2
Theoretical productivity	m³/h	90
Hopper capacity	m³	2-10 (Depends on mold width)
Climbing ability	%	≥20
Diesel tank	L	230+120 (optional)
Water tank	L	500
Hydraulic oil tank	L	300

Engine Performance Parameters

Engine model	/	Shangchai SC4H160.5G4
Engine power	kW r/min	118kW/2200
Engine type	/	4-cylinder water-cooled
Emission standard	/	Stage 4 (Stage 3 optional)

Dimensions & Weight

Dimensions (L * W * H)	mm	7000 * 3550 * 3600
Transport (L * W * H)	mm	7000 * 2250 * 2860
Track (L * W * H)	cm	163 * 30 * 63
Weight	kg	15000

Feeding System

Spiral device speed	r/min	0-70
Spiral diameter	cm	42
Belt device speed	r/min	0-100

Mold & Compaction

Number of molds	pcs	1
Construction form	/	Left side paving (optional)
Vibration rod frequency	Hz	0-167
Number of vibrators	pcs	5

Cleaning & Hydraulic Systems

Cleaning form	/	High pressure cleaning
Cleaning pressure	MPa	7
Quantity of hydraulic pumps	pcs	2
Hydraulic oil cooling	/	Large size radiator, forced air cooling
Maximum filtering accuracy	/	10μm

Construction Gallery

As a professional Concrete Slipform Paver manufacturer, we offer flexible configuration options to meet local design standards, helping contractors achieve consistent quality and accelerated project completion timelines.
