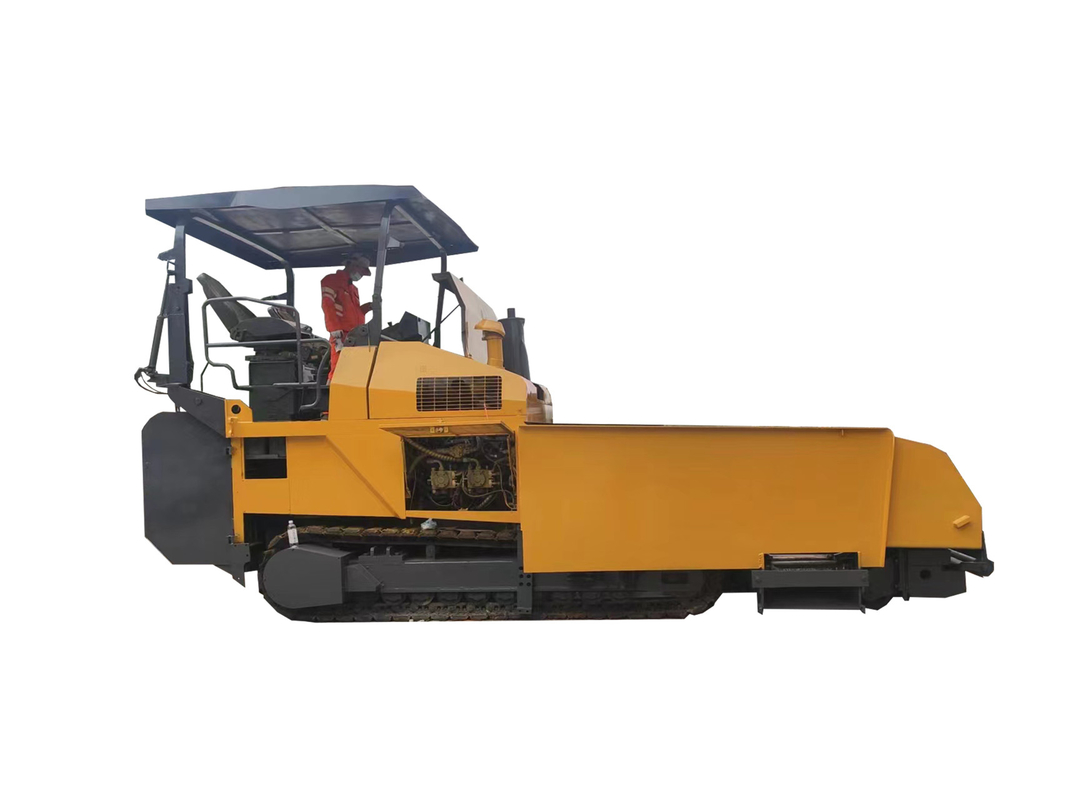

TLJ-1000 Slipform Paver Shoulder Soil Construction Slip Form Paver

TLJ-1000 Slipform Paver The Ideal Solution for Road Shoulder Soil Construction

Summary:

The TLJ-1000 soil shoulder paver is a specialized road shoulder soil paver that has been upgraded and renovated based on the asphalt concrete paver. It inherits the constant speed and stable walking drive system of the paver, and adopts a unique lateral feeding mode to evenly input the shoulder soil into the mold material groove. The mold can adjust the thickness and width continuously according to the process requirements of the shoulder soil, and then effectively compact the shoulder soil with front and rear compactors to achieve a density of over 90%. The use of this equipment has improved the construction process of shoulder soil, greatly enhancing the quality and efficiency of shoulder soil construction, reducing labor intensity, and especially significantly reducing construction costs. Received high praise from a large number of construction units.

Performance characteristics:

Hydraulic system

· The hydraulic components are sourced from internationally renowned brands.

· Both solenoid valves and oil cylinders are well-known brands with reliable quality and stable performance.

· Hydraulic power output, can quickly connect hydraulic picks and other auxiliary equipment.

Control system:

· A brand new electrical circuit system ensures high reliability and safety.

· Adopting an intelligent control system, the LCD screen can accurately display the operating parameters of each system and has a fault diagnosis display function.

Material conveying system:

· The hydraulic opening of the silo door is convenient and fast to operate.

· Adopting a horizontal feeding system, the discharge is continuous, fast, and without jamming, resulting in higher efficiency.

· Adopting a high torque device, the power is strong, and the feeding speed can be adjusted up to a maximum of 20 meters per minute.

Mold forming system:

· Using 2 compacting vibrators, flexible and adjustable, with a wide range of adjustments.

· The thickness and width of the mold can be infinitely adjusted within a certain range by the hydraulic cylinder, which is easy to use and adaptable to various working conditions.

·Quick hydraulic interface, easy to disassemble and connect without oil leakage.

Technical parameters:
