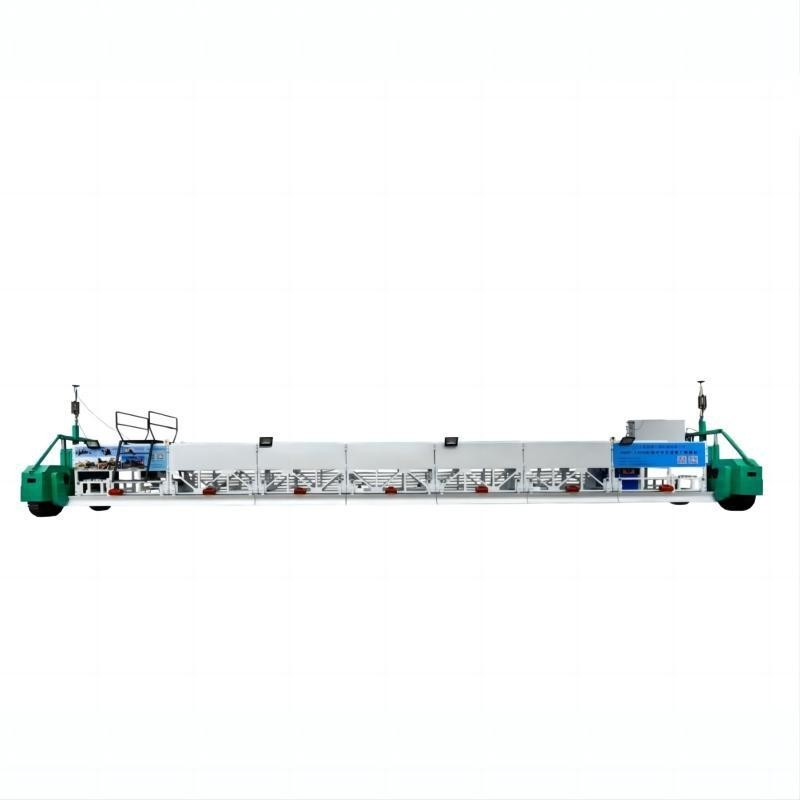

Automatic Slipform Paver 16m Paving Concrete Slip Form Paver

Name: Automatic Slipform Paver 16m Paving Concrete Slip Form Paver
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMP-1200
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMP-1200

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Container-shipping

Delivery Time: 15-30 days

Payment Terms: L/C,T/T

Supply Ability: 1 psc per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Automatic Slipform Paver, Slipform Paver 16m Paving, 16m Paving Concrete Slip Form Paver


Condition:	New	Paving Speed:	0-5m/min
Walking Speed:	0-10m/min	Type:	Road Construction Equipment
Rod Shaft Diameter:	φ219mm	Crawler Type:	Rubber Track
Control System:	Automatic	Paving Width:	≤16 Meters
Paving Thickness:	0-350 Mm

Condition:	New
Paving Speed:	0-5m/min
Walking Speed:	0-10m/min
Type:	Road Construction Equipment
Rod Shaft Diameter:	φ219mm
Crawler Type:	Rubber Track
Control System:	Automatic
Paving Width:	≤16 Meters
Paving Thickness:	0-350 Mm

Automatic Slipform Paver 16m Paving Concrete Slip Form Paver

Slipform Paver with Modular Assembly Mode for Different Bridge Deck Widths

Key Features

Modular assembly with split composite roller shaft connection for easy installation and width adjustment, suitable for various bridge deck widths
Tire walking mechanism operates directly on bridge deck steel mesh with hydraulic cylinder elevation adjustment via digital leveling instrument
Dual vibrating rollers with adjustable height, inclination angle, and transverse slope via shock-absorbing pad handwheel
Integrated flushing system simplifies daily maintenance
Built-in lighting fixtures for nighttime and tunnel construction visibility
High-frequency vibration pushing plate maintains concrete in optimal flowing state with consistent material level
Efficient compaction design ensures concrete density and effective leveling for low slump concrete
Large-diameter high-speed rollers offer extended wear resistance and superior linear/slurry effects
High horsepower output enables stable, high-speed paving for quality construction and efficiency

Technical Specifications

Parameter	Value
Power Supply	380V
Equipped Power	≥28KW
Roller Drive Motor Power	7.5kW
Walking Drive Motor Power	4x1.1kW
Display Interface	10" Touch Color Display
Operation Control	Electrical Cabinet + Software Integration
Paving Speed	0-5m/min
Walking Speed	0-10m/min
Spread Width	≤16m
Water Tank Capacity	300L
Hydraulic Oil Volume	80L
Rod Shaft Diameter	φ219mm
Rod Shaft Speed	240rpm
Vibration Frequency	≥3000次/min
Walking Style	Four Wheel Drive Rubber Tires
Elevation Control	Laser Automatic Positioning
Laser Positioning Method	Encoder Automatic Real-Time Tracking
