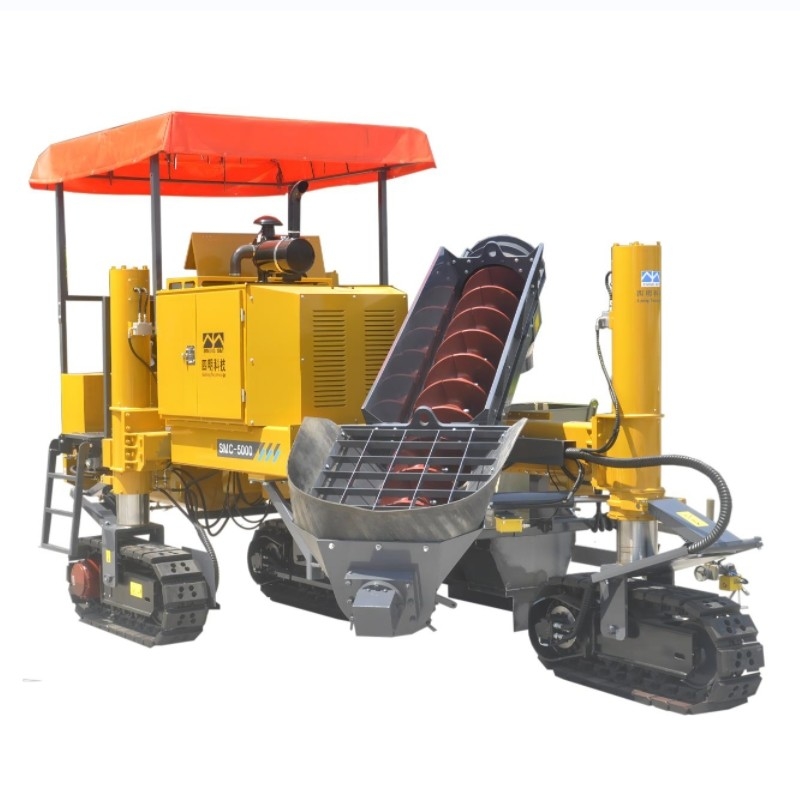

0-2500mm Slip Form Concrete Curb Machine Highway Curb Slipform Machine

Name: 0-2500mm Slip Form Concrete Curb Machine Highway Curb Slipform Machine
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-5000
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-5000

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: shipping

Delivery Time: 30-45 work days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                2500mm Slip Form Concrete Curb Machine, 2500mm slip form concrete machine, Highway Curb Slipform Machine


Operating Weight:	9 T	Overall Dimensions:	5400 X 2150 X 2700 Mm
Model:	Customized	Engine Power:	162 KW
Paving Width:	0-2500 Mm	Paving Speed:	0-10.5 M/min
Travel Speed:	0-35 M/min	Paving Height:	0-1300 Mm

Operating Weight:	9 T
Overall Dimensions:	5400 X 2150 X 2700 Mm
Model:	Customized
Engine Power:	162 KW
Paving Width:	0-2500 Mm
Paving Speed:	0-10.5 M/min
Travel Speed:	0-35 M/min
Paving Height:	0-1300 Mm

0-2500mm Slip Form Concrete Curb Machine Highway Curb Slipform Machine

Highway Curb Stone Paving Perfected with Advanced 0-2500 mm Concrete Slip Form Paver

The concrete slipform paver offers significant advantages for highway curb stone construction, delivering efficient operation that dramatically reduces paving time compared to traditional manual methods. This continuous-operation machine ensures superior construction quality with smooth linearity, flat surfaces, and precise dimensional accuracy for seamless highway integration and reduced vehicle bumpiness.

While the initial equipment investment is higher, the long-term benefits include reduced labor costs and minimized maintenance expenses. The machine adapts to diverse highway terrains, accurately paving both straight and curved sections, as demonstrated in expressway expansion projects where it enhanced both project timelines and finished quality.

Key Features

Quick Positioning: Hydraulic cylinder mold adjustment enables rapid setup for various working conditions
Adjustable Feeding: Screw feeding system with hydraulic tilt and position adjustment for optimal material placement
Track Offset Capability: Hydraulic track spacing adjustment facilitates transportation and increases paving width
Multi-Function Design: Accommodates curbs, gutters, crash walls, and more with optional middle mold configuration
Versatile Operation Modes: Multiple mold options available for diverse construction requirements
Full Hydraulic Drive: Features imported components including load-sensitive variable pumps and high-performance vibrators
Optional Milling Function: Hydraulic motor-driven leveler mills hard roadbeds for improved material containment

Technical Specifications

Parameter	Specification
Paving Width	0-2500 mm (side placement) 0-3000 mm (mid placement)
Paving Height	0-1300 mm
Flatness	±3 (mm/3m)
Paving Speed	0-10.5 m/min
Driving Speed	0-35 m/min
Feed System	Spiral / belt
Weight	9 t
Transportation Dimensions	540021502700 mm
Hydraulic Vibrator Interface	5/6
Vibrator Frequency	0-167 Hz
Fuel Tank	115 L
Water Tank	290 L (standard) + 420 L (optional)
Engine Type	Weichai WP4.1G100E (standard) Yanma 4TNV98T (optional)
Rated Power	73.5 Kw/2300rpm (Weichai) 63.9 Kw/2400rpm (Yanma)
Emission Standard	Stage 3
