4.5m Concrete Road Paver Machine Rear Mounted Mold Cement Slipform Paver

Name: 4.5m Concrete Road Paver Machine Rear Mounted Mold Cement Slipform Paver
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-6500
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-6500

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Container

Delivery Time: 30-45 days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Mold Cement Slipform Paver, Rear Mounted Slipform Paver, 4.5m Concrete Road Paver Machine


Max Paving Width:	4500 Mm	Warranty:	1 Year
Paving Depth:	0-15 M/min	Travel Speed:	0-1.8 Km/h
Weight:	19.5 T	Vibration Frequency:	0-167 Hz
Fuel Capacity:	320L

Max Paving Width:	4500 Mm
Warranty:	1 Year
Paving Depth:	0-15 M/min
Travel Speed:	0-1.8 Km/h
Weight:	19.5 T
Vibration Frequency:	0-167 Hz
Fuel Capacity:	320L

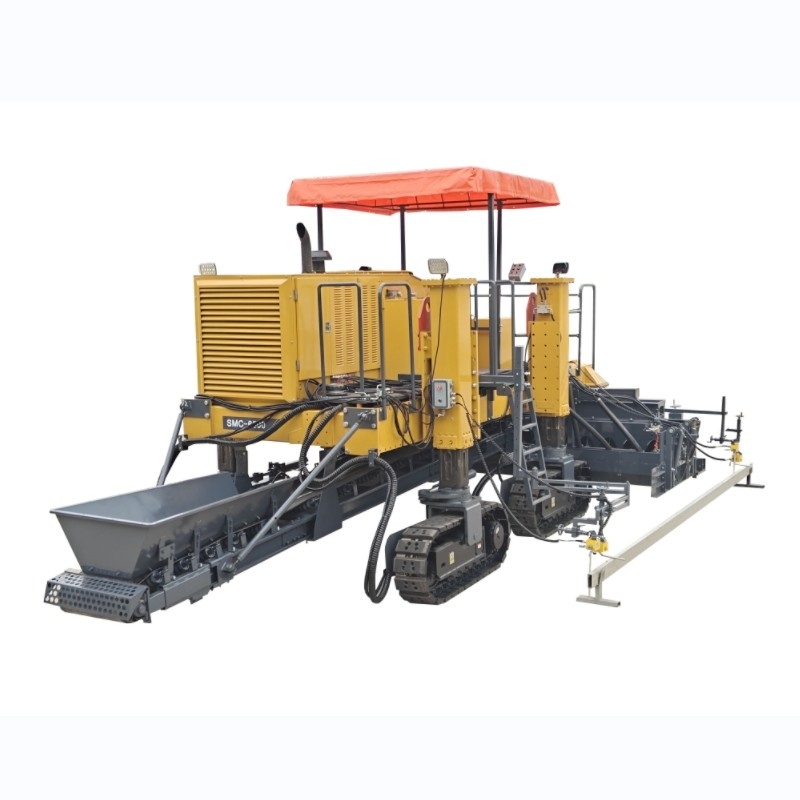

4.5m Concrete Road Paver Machine Rear Mounted Mold Cement Slipform Paver

4.5-meter rear-mounted mold cement slipform paver designed for rural road construction applications.

Application Conditions

The SMC-6500C is a rear sliding mode paver featuring full hydraulic drive and four-track walking system, delivering stronger driving force for negative clearance construction. Primarily used for paving on rural roads and shoulder-less roads.

Construction Advantages

Enhanced efficiency: Rapidly completes road surface paving, reducing construction time and traffic disruption
Superior quality: Precise control of flatness, slope, and thickness for improved load capacity and drainage
Terrain adaptability: Flexible operation on narrow, curved, and undulating rural roads
Resource efficiency: Minimizes material waste through precise control and efficient operation
Safety enhancement: Creates standardized road surfaces to reduce vehicle control risks
Construction standardization: Ensures consistent quality across all project sections
Labor optimization: Reduces physical demands on workers while improving job site safety

Functional Features

Shangchai 6-cylinder engine with electric preheating, high-altitude capability, and National III/IV emission compliance
Industrial CAN bus communication system for reliable control panel operation
User-friendly widescreen LCD display with clear fault indication
Full track steering system with multiple positioning modes for efficient operation
Automatic leveling system ensures superior road surface smoothness
Automatic steering function maintains perfect linearity during paving
Four elongated tracks enhance ground adhesion capability
Rear mounted mold design optimized for negative gap construction
550L water tank with high-pressure water gun system for efficient cleaning

Technical Parameters

Parameter	Specification
Paving width	2500-4500 mm
Paving height	0-300 mm
Flatness	±3 mm/3m
Paving Speed	0-15 m/min
Driving speed	0-1.8 km/h
Vibrator brand	WYCO
Vibrator interface	12
Vibrator frequency	0-167 Hz
Fuel tank	320L
Water tank	550L
Engine	Shangchai SC4H160.5G4
Rate power	118Kw/2200rpm
Emission standard	Phase Ⅳ (Phase Ⅲ optional)
Feed system	Spiral/belt
Weight	19.5 t
Transport size (LWH)	750030002800 mm
