High Pressure Common Rail Control Slipform Paver For National III Emission

Name: High Pressure Common Rail Control Slipform Paver For National III Emission
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-6500
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-6500

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Container

Delivery Time: 30-45 days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Common Rail Control Slipform Paver, High Pressure Slipform Paver, concrete slip form paver for sale


Paving Width:	2500-4500 Mm	Warranty:	1 Year
Paving Depth:	0-15 M/min	Travel Speed:	0-1.8 Km/h
Weight:	19500 Kg	Vibration Frequency:	0-167 Hz
Fuel Capacity:	320L

Paving Width:	2500-4500 Mm
Warranty:	1 Year
Paving Depth:	0-15 M/min
Travel Speed:	0-1.8 Km/h
Weight:	19500 Kg
Vibration Frequency:	0-167 Hz
Fuel Capacity:	320L

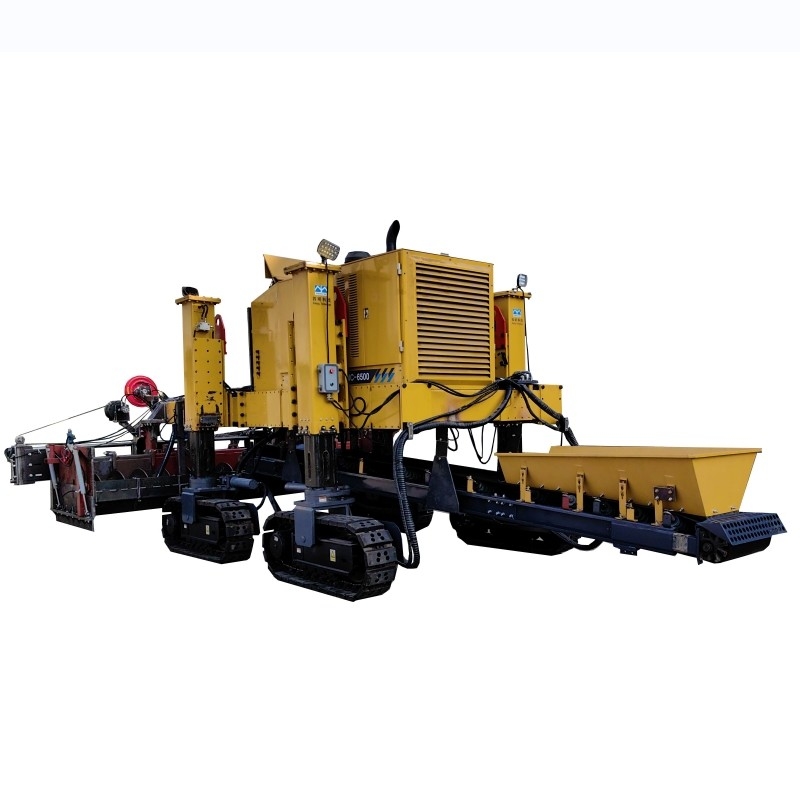

High Pressure Common Rail Control Slipform Paver For National III Emission

The SMC-6500 is a rear sliding mode paver featuring full hydraulic drive and four-track walking system, designed for negative clearance construction. It is primarily used for paving on rural roads and shoulder-less roads.

Key Features

Shangchai 6-cylinder engine with electric preheating, delivering high power output suitable for high-altitude construction
High pressure common rail control system compliant with National III emission standards (National IV optional)
Advanced industrial CAN bus communication system between control panel and main control box for simplified, reliable operation
User-friendly widescreen LCD display showing machine status with intuitive fault indications
Full track steering system with positioning function for multiple steering modes and quick positioning
Automatic leveling system ensures superior road surface smoothness
Automatic steering function creates perfect linearity during paving
Four elongated tracks enhance ground adhesion capability
Rear-mounted mold for negative gap construction with high-pressure water gun system (550L water tank capacity)

Technical Specifications

Parameter	Value
Paving width	2500-4500 mm
Paving height	0-300 mm
Flatness	±3 mm/3m
Paving Speed	0-15 m/min
Driving speed	0-1.8 km/h
Vibrator brand	WYCO
Vibrator interface	12
Vibrator frequency	0-167 Hz
Fuel tank	320L
Water tank	550L
Engine	Shangchai SC4H160.5G4
Rate power	118Kw/2200rpm
Emission standard	Phase IV (Phase III optional)
Feed system	Spiral/belt
Weight	19.5 t
Transport size (LWH)	750030002800 mm

Operation Principle

The rear sliding mode paver consists of main components including the host machine, mold, vibration system, leveling system, and control system.

Concrete Supply: Mixed cement concrete is transported to the paver's hopper via transportation equipment.

Mold Forming: The rear-mounted mold shapes the concrete according to construction requirements as the paver advances.

Compaction: High-frequency vibration evenly distributes aggregates, removes bubbles, and enhances concrete density for structural integrity.

Leveling Control: Sensors monitor elevation and slope, with the control system adjusting mold parameters to meet design specifications.

Continuous Operation: The paver maintains continuous progress, repeating the paving process for efficient construction.
