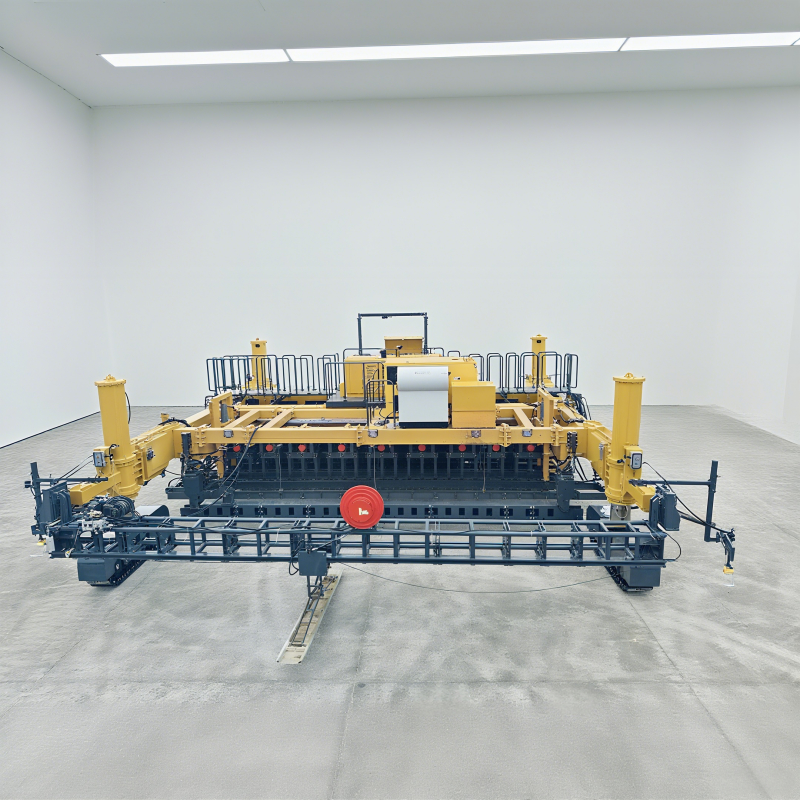

SMC - 6800 Slipform Paver | Multi - scenario Construction for Highways & Railways

Name: SMC - 6800 Slipform Paver | Multi - scenario Construction for Highways & Railways
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-6800
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-6800

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: shipping

Delivery Time: 30-45 days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                SMC 6800 slipform paver for highways, multi-scenario concrete slipform paver, railway construction slipform paver machine


Vibrating Frequency:	0-167 Hz	Control System:	Automatic
Vibrating System:	Hydraulic	Condition:	New
Application:	Concrete Paving	Walking Speed:	0-6m/min
Fuel Tank Capacity:	470 L	Diesel Tank Volume:	370L
Weight:	30t

Vibrating Frequency:	0-167 Hz
Control System:	Automatic
Vibrating System:	Hydraulic
Condition:	New
Application:	Concrete Paving
Walking Speed:	0-6m/min
Fuel Tank Capacity:	470 L
Diesel Tank Volume:	370L
Weight:	30t

SMC - 6800 Slipform Paver | Multi - scenario Construction for Highways & Railways

SMC - 6800 Slipform Paver | Multi-scenario Construction for Highways & Railways

The SMC-6800 Slipform Paver is an all-round solution for cement concrete construction, independently developed to handle multiple scenarios including highways and railways. Equipped with super-large power hydraulic drive and automatic steering/leveling systems, it completes the entire process of material separation, vibration, and finishing in one operation. With 16 vibration circuits (6 expandable) for precise control, plus unique material spreading, vibrating and ironing systems, it delivers fast, high-quality construction of excellent cement structures.

Main Performance and Features

Power System

Water-cooled engine delivers strong, reliable power
Large-size radiator provides remarkable heat dissipation

Hydraulic System

Load sensitive hydraulic system (DANFOSS brand)
High-precision filters (10μm max) on pump oil inlets/outlets

Electrical Control System

Color graphic console with integrated fault diagnosis, status display, and alarm functions
Electronic control for steering, longitudinal/transverse slope via CAN bus communication
Standard configuration includes 2 longitudinal slope sensors, 1 lateral slope sensor, and 1 steering sensor

Walking System

Comprehensive system includes variable pump, hydraulic valve, motor, reducer, crawler belt and controls
Two-track drive with four-wheel propulsion and stepless speed adjustment

Flushing System

Adjustable high-pressure flushing system (standard 5MPA setting)

Feeding System

Direct material feed from cement mixer trucks or excavators into hopper

Vibration Compaction System

U.S. imported square-shell hydraulic vibrators
Standard configuration: 2 vibrating rods, 6 oil circuits
Stepless frequency adjustment (0-167Hz)

Technical Parameters

Parameter	Value
Paving Width	3500-8500 mm
Paving Thickness	0-450 mm
Smoothness	±3 (mm/3m)
Paving Speed	0-6 m/min
Speed	0-1.1 km/h
Vibrating Circuits	16
Vibrating Frequency	0-167 Hz
Diesel Tank	370 L
Water Tank	400 L (standard) + 140L*4 (optional)
Total Length	13740/9640 mm (transportation/work)
Width	2800/7300 mm (transportation/work)
Height	3220/4300 mm (transportation/work)
Engine Model	SC7H240 G4
Power	177 Kw @ 2200rpm
Emission	Stage 4
