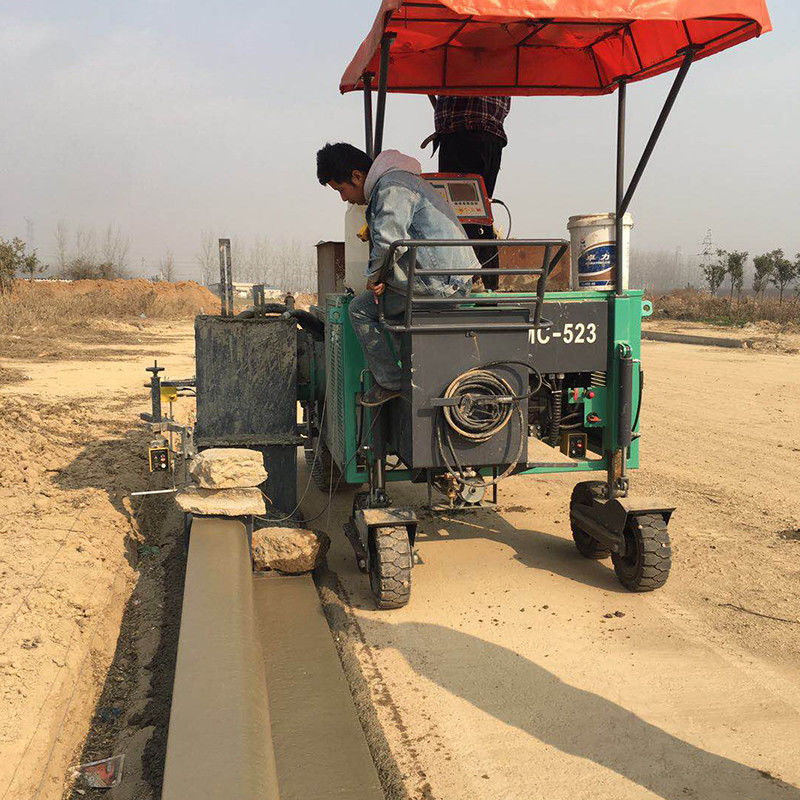

SMC-523 Concrete Gutter Paving Machine for Roadside Drainage Channel Construction

The SMC-523 Curb & Gutter Slipform Paver is designed for concrete profiles such as road curbs and drainage-related structures, subject to the selected mold and project drawings. It combines hydraulic travel, a tracked undercarriage and an auger feeding device to support concrete forming along prepared construction lines.

Roadside drainage channels require suitable dimensions, a consistent profile and the designed longitudinal slope so that water can flow as intended. Traditional construction methods may involve multiple formwork operations and manual adjustments. For repeated channel sections, a slipform paver can provide an alternative construction process by feeding concrete into a dedicated mold and forming the profile continuously.

The SMC-523 has a listed paving width range of 0–1,250 mm and paving height range of 0–500 mm. Its sensor-based steering, grade and slope control can help operators follow the designed line and elevation. Before selecting the machine for a drainage project, the buyer should provide the channel cross-section, required slope, concrete mix and site conditions to confirm mold compatibility.

• Dedicated mold forming: Supports concrete profile construction based on the selected mold.
• Auger feeding device: Helps distribute concrete into the forming area and improves feeding efficiency.
• Tracked hydraulic travel: Provides traction and a large contact area on suitable prepared surfaces.
• Sensor-based control: Supports steering, grade and slope adjustment during operation.
• Two standard vibrator circuits: The machine specification lists two vibrator interface circuits.
• LCD operating display: Helps the operator monitor working status and fault indications.
• High-pressure water flushing: Assists with cleaning after the construction shift.

Roadside drains and concrete gutters are designed to collect and guide surface water. If the channel profile, cross-section or longitudinal slope does not match the engineering drawings, the drainage structure may not perform as intended. Uneven concrete feeding and inconsistent forming can also increase the need for manual correction.

Construction conditions may vary along the route. Contractors can encounter changes in roadbed preparation, limited working space, different channel dimensions and restricted access for material delivery. The selected equipment must therefore match the actual channel geometry and site conditions rather than relying only on a general machine description.

A slipform paver is most relevant when the project contains repeated concrete profiles and the mold can be designed to match the required section.

The SMC-523 uses a dedicated mold to form the required concrete profile. Its auger feeding device helps distribute concrete, while the vibration system supports the forming process. Sensor-based steering, grade and slope control can help operators maintain the planned line and elevation.

For drainage channel projects, the mold design is especially important. Before production, the contractor should confirm the channel bottom width, top width, depth, side slopes, wall thickness and longitudinal gradient. These dimensions must be checked against the actual machine and mold configuration.

The SMC-523's listed dimensions are machine working ranges, not a guarantee that every channel shape can be produced without a suitable mold. Custom profile requirements should be reviewed before an order is finalized.

Final dimensions and weight depend on the configuration. Verify the required mold and construction profile before ordering.

Subject to mold compatibility, the SMC-523 may be considered for:

• Roadside concrete drainage channels
• Concrete gutters along access roads
• Drainage structures beside rural roads
• Roadside drainage profiles on highway-related projects
• Repeated narrow concrete channels and edge profiles

For overseas projects, buyers should also consider concrete batching arrangements, aggregate supply, water availability, transport access and maintenance support.

1. Provide the channel drawing: Include the cross-section, depth, width, wall thickness and side slopes.
2. Confirm the longitudinal gradient: State the design slope and how it will be set out on site.
3. Describe the concrete mix: Include slump or consistency, aggregate size and reinforcement requirements if applicable.
4. Check the machine's working range: Confirm the channel profile is compatible with the selected mold.
5. Evaluate access and travel conditions: Explain the ground condition, route width and working space.
6. Discuss control and support: Confirm the required grade and slope control, engine option, spare parts and operator training.
