Product Details
Place of Origin: China
Brand Name: SIMING
Certification: ISO-9001
Model Number: SMC-3200
Payment & Shipping Terms
Minimum Order Quantity: 1 psc
Packaging Details: Container
Delivery Time: 10-30 days
Condition: |
New |
Paving_Speed: |
0 - 11.6 M/min |
Travel_Speed: |
1.2 Km/h |
Style: |
Track |
Weight: |
6000 Kg |
Power_Source: |
Diesel |
Product_Name: |
Slipform Paver |
Diesel Tank Volume: |
190L |
Condition: |
New |
Paving_Speed: |
0 - 11.6 M/min |
Travel_Speed: |
1.2 Km/h |
Style: |
Track |
Weight: |
6000 Kg |
Power_Source: |
Diesel |
Product_Name: |
Slipform Paver |
Diesel Tank Volume: |
190L |

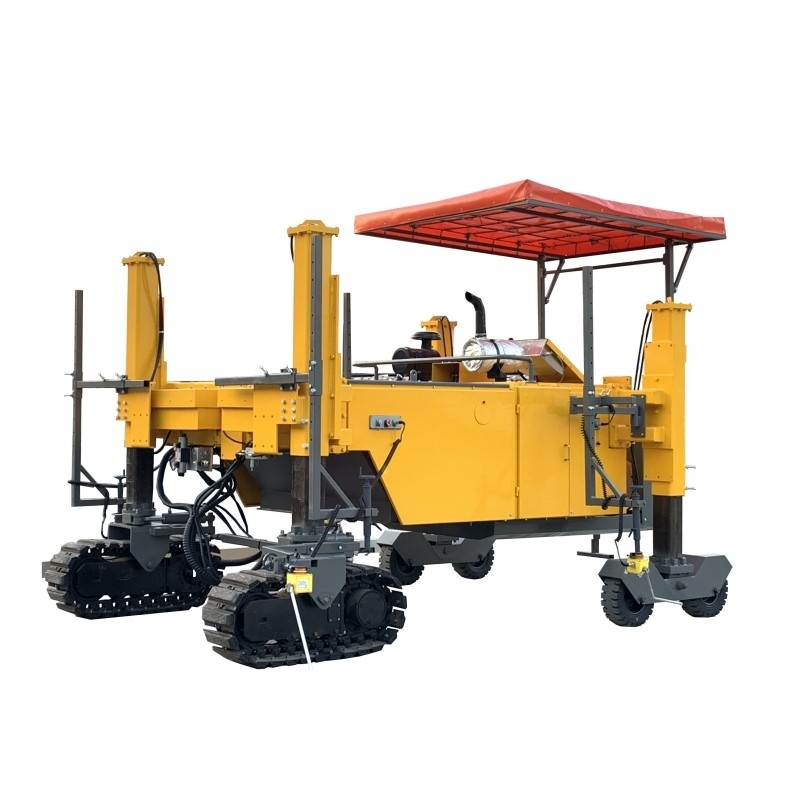

2-meter wide customizable cement sliding mode paving machine for water channels
Product description
SMC-3200 cement concrete slipform paver is a slipform construction equipment independently developed by our company for small and medium-sized concrete structures. Compared with the traditional prefabrication process and fixed mold cast-in-place process, the sliding form process using this type of machine has the advantages of fast construction speed, high efficiency and good quality.
The machine has strong engine power, full electronic control, full hydraulic drive, two crawler drives, and is equipped with an automatic steering and leveling control system. It can complete the vibration compaction, paving, forming and other processes of cement concrete structures at one time.
According to different construction conditions, the walking mode of SMC-3200 cement concrete slipform paver can be divided into two modes: two crawler drive and four-wheel driven walking or single crawler drive and four-wheel driven walking. If the conditions of the roadbed on both sides permit, two crawlers can be installed on the front side of the paver to walk on the roadbed; Side embankment walking.
SMC-3200 cement concrete slipform paving meets container transportation conditions. When transporting, change the two crawler belts on the front side of the paver to single crawler belt, and move the installation position of the rear column inward.
Technical Parameters
| Engine Parameters | |
| manufacturer | Weichai |
| model | WP3.2G |
| Calibration power | 36.8Kw/2500rpm |
| Displacement | 3.17L |
| Number of cylinders | 4 cylinders |
| cooling method | water cooling |
| Emission Standards | Stage 3(stage 4 optional) |
| Electrical System Parameters | |
| power supply | 12V |
| UI | color display |
| operation control | integrated control |
| control bus | CAN |
| Three boxes volume | |
| Fuel tank | 190L |
| Hydraulic tank | 200L |
| water tank | 600L |
| walking parameters | |
| paving speed | 0-11.6m/min |
| Driving speed | 0-1.2km/h |
| Climbing ability (working state) | 20% |
| Track Steering Angle | 250(left),360(left) |
| Flatness | 3mm/3m |
| Vehicle height adjustment | |
| Hydraulic height adjustment | 900mm |
| mechanical height adjustment | 230mm |
| Basic Paving Parameters | |
| The maximum paving width of the ditch | 2100mm |
| The maximum paving depth of the ditch | 850mm |
| Pavement maximum paving width | 2000mm |
| Pavement Maximum Paving Thickness | 200mm |
| Maximum working capacity | 50m3/h |
| Total Weight | 6t |
| Overall Dimensions (Working/Transportation) | |
| Total length | 4450mm/4450mm |
| Total width | 2720mm/(road 2430mm,container 1900mm) |
| Total height | 3400mm/(road 2200mm,container 2200mm) |
| Vibrator | |
| Number of ports | 6 |
| vibrator form | Hydraulic Straight Vibrator |
| Adjustment method | Manual scaling |
