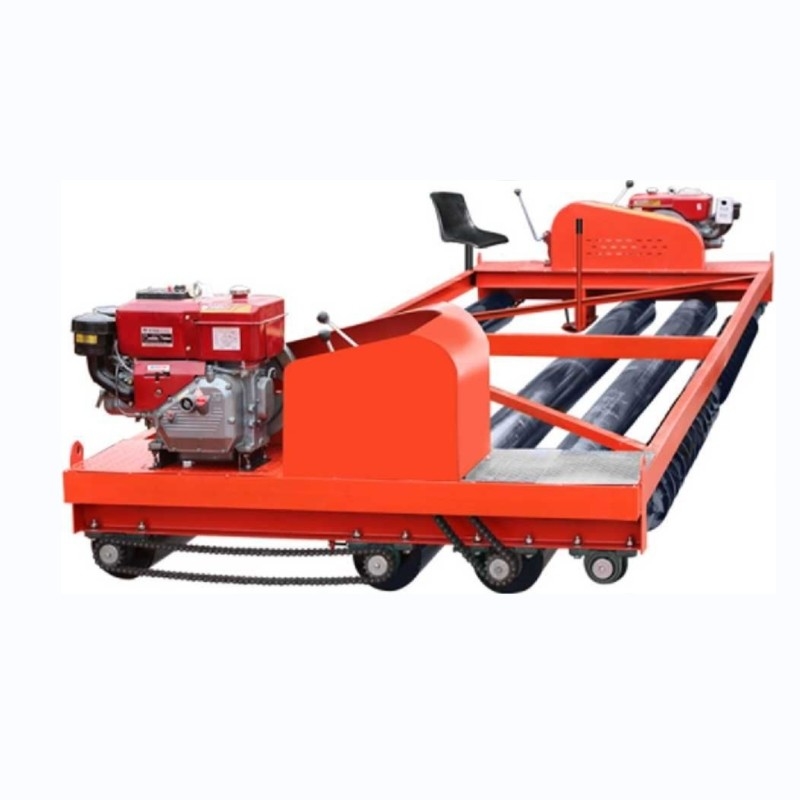

Electric Drum Roller Slipform Paver Floor Concrete Leveling Machine

Name: Electric Drum Roller Slipform Paver Floor Concrete Leveling Machine
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMP-600
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMP-600

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Container

Delivery Time: 10-15 days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Electric Drum Roller Slipform Paver, Slipform Paver Floor Concrete Leveling Machine, Concrete Leveling Slipform Paver


Travel Speed:	5-8 M/min	Roller Length:	4000-6000 Mm
Spread Thickness:	10-18 Mm	Weight:	800-1500 Kg

Travel Speed:	5-8 M/min
Roller Length:	4000-6000 Mm
Spread Thickness:	10-18 Mm
Weight:	800-1500 Kg

Electric Drum Roller Slipform Paver Floor Concrete Leveling Machine

Electric Drum Roller Paver Ground Floor Road Concrete Leveling Machine Vibrator Concrete Paver

Product Overview

This machine is widely used in cement concrete surface paving operations for graded highways, bridges, tunnels, municipal roads, squares, rural roads, and airport runways. It significantly improves mechanized paving capacity, accelerates construction progress, and ensures high-quality paving results, making it particularly suitable for cost-effective cement concrete pavement projects in rural areas.

Building on traditional roller shaft leveling machine advantages while incorporating market needs, this series offers expanded functionality. It integrates vibration, fabric handling, slurry lifting, leveling, and self-propulsion capabilities in one machine, with options for special customization to meet specific project requirements.

Key Features

Simple operation requiring only one operator, reducing labor costs and improving efficiency
Truss structure constructed with high-quality thickened steel pipes for enhanced durability and stability
High-frequency vibration pushing plate or spiral agitator shaft for initial leveling and improved slurry distribution
Modular truss design with six-axis split composite connection for flexible width adjustment
Roller or steel wheel walking system that operates directly on templates and tracks
Safety-enhanced design with side protection for construction personnel

Technical Specifications

Parameter	4-Axis Machine	Custom Vibration Machine
Roller Length (mm)	4000-6000	4000-6000
Excitation Frequency (Hz)	60	200
Excitation Force (kN)	5.5	≥30
Walking Speed (m/min)	5-8	5-8
Spread Thickness (mm)	10-18	10-50
Total Motor Power (kW)	10.5-16.5	15-50
Machine Weight (kg)	800-1500	*
