Multi Purpose Concrete Slip Form Paver For Highway Construction

Name: Multi Purpose Concrete Slip Form Paver For Highway Construction
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-5500
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO 9001

Model Number: SMC-5500

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: Container shipping

Delivery Time: 30-45 work days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Multi Purpose Concrete Slip Form Paver, Highway Concrete Slip Form Paver, Highway Construction Slipform Paver


Paving Width:	3 M	Paving Height:	1.8m
Engine Power:	118 KW	Model:	Customized
Paving Speed:	0-10 M/min	Travel Speed:	0-2 Km/h
Fuel Tank Capacity:	230 L	Overall Dimensions:	7 X 2.25 X 2.86 M
Operating Weight:	15 T	Condition:	New
Grade Control System:	Automatic

Paving Width:	3 M
Paving Height:	1.8m
Engine Power:	118 KW
Model:	Customized
Paving Speed:	0-10 M/min
Travel Speed:	0-2 Km/h
Fuel Tank Capacity:	230 L
Overall Dimensions:	7 X 2.25 X 2.86 M
Operating Weight:	15 T
Condition:	New
Grade Control System:	Automatic

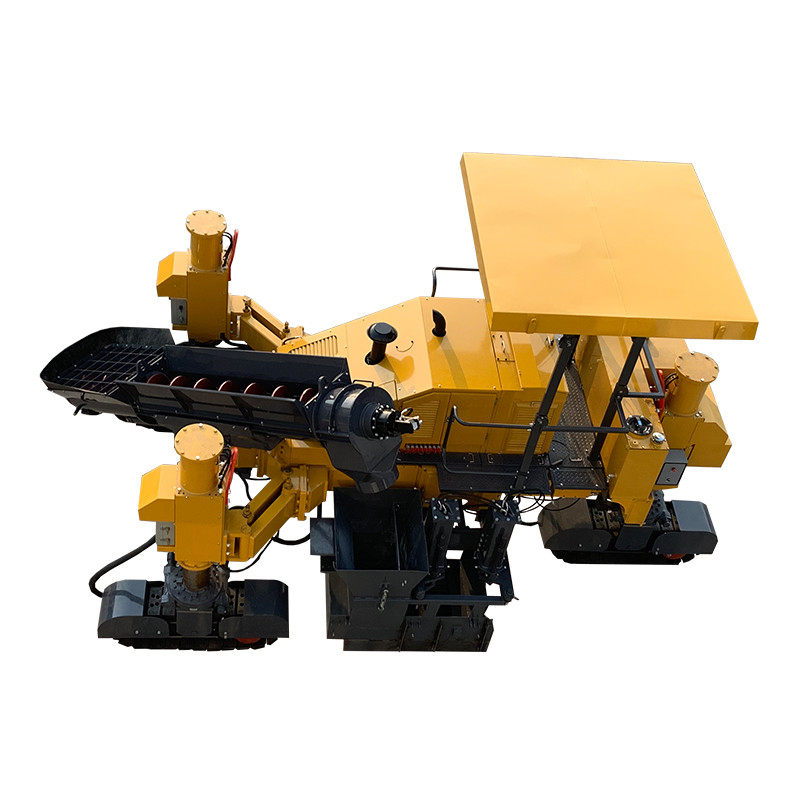

Multi Purpose Concrete Slip Form Paver For Highway Construction

Multi-Purpose Concrete Slip Form Paver for Highway Construction

The cement slipform machine is widely used in the field of highway engineering. It is an automatic operating equipment that directly pours and manufactures cement concrete structures such as curb stones, road shoulders, drainage ditches, and concrete guardrails at the construction site.

Features:

Improving construction efficiency: Compared with traditional construction methods, it can greatly accelerate the construction progress.
Ensuring construction quality: It can increase the bond strength between curb stones, road shoulders, etc. and the lower bonding layer, enhance their integrity, make the strength of concrete structures higher, extend the service life; and can also better ensure the flatness and surface wear resistance of concrete pavements.
Saving costs: With its own formwork, it saves the cost of formwork and the formwork installation process.
Multi-purpose in one machine: By changing the molds, it can easily adapt to the construction of structural components of various shapes and sizes, such as curb stones, road shoulders, water troughs, anti-collision guardrails, ditches, etc. of different shapes and sizes.
High degree of automation: Most processes are completed by machinery, saving manpower and reducing the labor intensity of on-site construction personnel.

Technical Parameters:

No.	Project	Unit	Parameter
Basic performance parameters
1	Max paving width	cm	300
2	Max paving height	cm	180
3	Work speed	m/min	0～10
4	Driving speed	km/h	0～2
5	Theoretical productivity	m³/h	90
6	hopper capacity	m³	2～10(Depends on the width of the mold)
7	Climbing ability	％	≥20
8	Diesel tank	L	230+120(optional)
9	Water tank	L	500
10	Hydraulic oil tank	L	300
Engine performance parameters
11	Engine model	/	Shangchai
12	Engine power	kW r/min	118Kw/2200
13	Engine type	/	4-cylinder water-cooled
14	Emission standard	/	stage 4(stage 3 is optional)
Size parameters
15	Dimensions (L x W x H)	mm	7000×3550×3600
16	Transport (L x W x H)	mm	7000×2250×2860
17	Track (L x W x H)	cm	163x30x63
Weight parameters of the whole machine
18	Weight	kg	15000
Homework performance parameters - feeding
22	Spiral device speed	r/min	0～70
23	Spiral diameter	cm	42
24	Belt device speed	r/min	0～100
Homework Performance Parameters - Mold
25	Number of molds	pcs	1
26	Construction form	/	Left side paving(optional)
Performance parameters for homework - vibration compaction
28	Vibration rod frequency	Hz	0～167
32	Number of vibrator	pcs	5
Homework Performance Parameters - Cleaning
33	Cleaning form	/	High pressure cleaning
34	Cleaning pressure	Mpa	7
Hydraulic system
35	Quantity of hydraulic pumps	pcs	2
36	Hydraulic oil cooling	/	Large size radiator, forced air cooling
37	Maximum filtering accuracy	/	10μm
