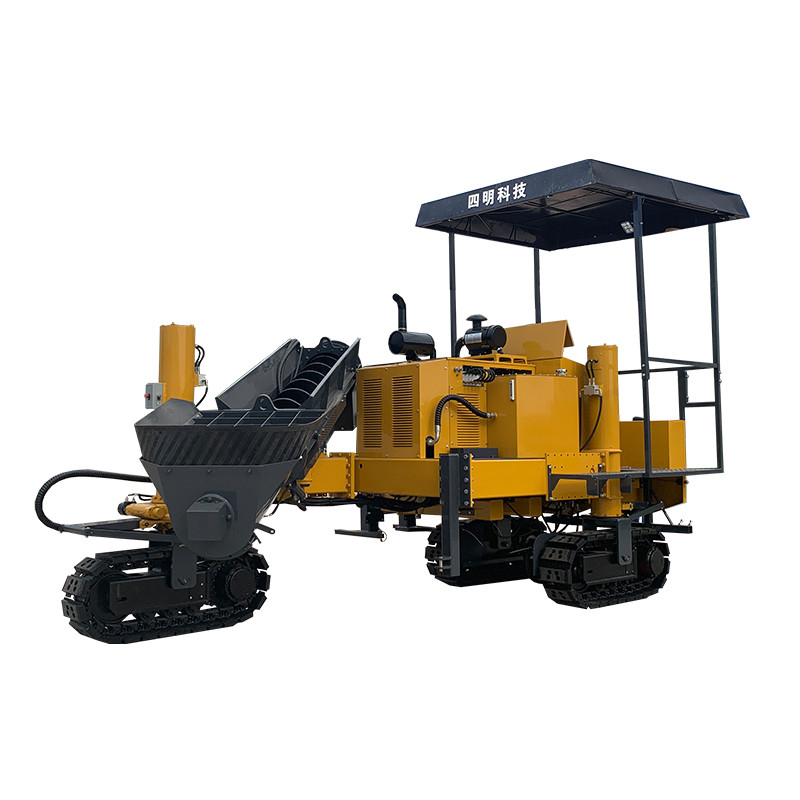

0-1300mm Concrete Slipform Paver For Highways Anti Collision Walls

Name: 0-1300mm Concrete Slipform Paver For Highways Anti Collision Walls
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-5000
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-5000

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: shipping

Delivery Time: 30-45 work days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                1300mm Concrete Slipform Paver, Highways Anti Collision Walls Slipform Paver, Anti Collision Walls Concrete Slipform Paver


Operating Weight:	9 T	Overall Dimensions:	5.4 X 2.15 X 2.7m
Model:	Customized	Engine Power:	162 KW
Paving Width:	0-2.5 M	Paving Speed:	0-10.5 M/min
Travel Speed:	0-35 M/min	Paving Height:	0-1.3 M

Operating Weight:	9 T
Overall Dimensions:	5.4 X 2.15 X 2.7m
Model:	Customized
Engine Power:	162 KW
Paving Width:	0-2.5 M
Paving Speed:	0-10.5 M/min
Travel Speed:	0-35 M/min
Paving Height:	0-1.3 M

0-1300mm Concrete Slipform Paver For Highways Anti Collision Walls

The advanced 0-1300mm concrete slipform paver is engineered for precision laying of anti-collision walls on highways. As a critical component of highway traffic safety infrastructure, this machine delivers exceptional efficiency and quality in wall construction.

The concrete slipform paver significantly enhances highway safety projects through rapid continuous operation, superior forming quality with smooth surfaces and precise dimensions, and optimized resource utilization that reduces labor costs and material waste.

Key Features

Quick Positioning: Hydraulic cylinder adjustment enables fast mold positioning for immediate operation across various working conditions.
Adjustable Conveying: Spiral feeding system with hydraulic tilt and position adjustment ensures optimal material placement directly above the mold hopper.
Track Offset Capability: Hydraulic track spacing adjustment facilitates transportation and increases paving width in middle mode operation.
Multi-Function Design: Configurable for curbs, gutters, crash walls, and other applications with optional middle mold for diverse concrete structures.
Modular Operation: Multiple mold configurations available to meet specific project requirements and maximize equipment utilization.
Hydraulic Efficiency: Imported load-sensitive variable pumps and components ensure energy efficiency and reliable performance with high-quality vibration systems.
Optional Milling: Hydraulic motor-driven leveler mills hard roadbeds for improved mold alignment and reduced material leakage (optional feature).

Technical Specifications

Parameter	Value
Paving Width	0-2500 mm
Paving Height	0-1300 mm
Flatness	±3 (mm/3m)
Paving Speed	0-10.5 m/min
Driving Speed	0-35 m/min
Feed System	Spiral / belt
Weight	9 t
Transportation Dimensions	540021502700 mm
Hydraulic Vibrator Interface	5/6
Vibrator Frequency	0-167 Hz
Fuel Tank	115 L
Water Tank	290 L (standard) + 420 L (optional)
Engine Type	Weichai WP4.1G100E (standard) Yanma 4TNV98T (optional)
Rated Power	73.5 Kw/2300rpm (Weichai) 63.9 Kw/2400rpm (Yanma)
Emission Standard	Stage 3
