Cement Sliding Mode Road Paving Machine 2 Meter Wide Customizable

Name: Cement Sliding Mode Road Paving Machine 2 Meter Wide Customizable
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-3200
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-3200

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Container

Delivery Time: 10-30 days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Sliding Mode Road Paving Machine, 2 Meter Road Paving Machine, Customizable road paving equipment


Condition:	New	Paving_Speed:	0 - 11.6 M/min
Travel_Speed:	20 M/min	Style:	Track
Weight:	6000 Kg	Power_Source:	Diesel
Product_Name:	Slipform Paver	Diesel Tank Volume:	190L

Condition:	New
Paving_Speed:	0 - 11.6 M/min
Travel_Speed:	20 M/min
Style:	Track
Weight:	6000 Kg
Power_Source:	Diesel
Product_Name:	Slipform Paver
Diesel Tank Volume:	190L

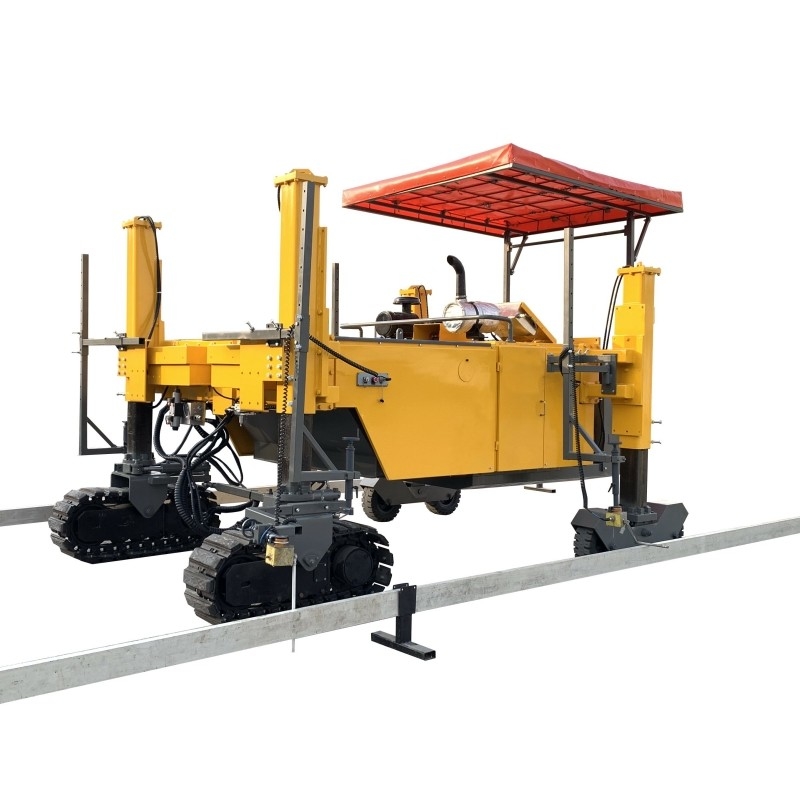

Cement Sliding Mode Road Paving Machine 2 Meter Wide Customizable

2-meter wide customizable cement sliding mode paving machine for water channels

Product description

In the agricultural field:
Farmland channel construction: It is used to lay farmland irrigation and drainage channels to ensure the effective distribution and discharge of water resources, improve the efficiency of farmland irrigation, and reduce waterlogging disasters.
Farmland road paving: It provides a smooth driving road for agricultural machinery and transport vehicles to facilitate the transportation of agricultural products and the conduct of agricultural production activities.

In terms of water conservancy construction:
Small-scale water conservancy projects: Such as the concrete paving of the slopes and bottoms of small reservoirs and ponds, to enhance the stability and durability of water conservancy facilities.
River slope protection construction: Concrete is laid on the slope protection on both sides of the river to prevent soil erosion and protect the stability of the river.
Water conservancy channel lining: It is used for the concrete lining of water conservancy irrigation and drainage channels to reduce the leakage loss of water resources during the transportation process.

Technical Parameters

Engine Parameters
manufacturer	Weichai
model	WP3.2G
Calibration power	36.8Kw/2500rpm
Displacement	3.17L
Number of cylinders	4 cylinders
cooling method	water cooling
Emission Standards	Stage 3(stage 4 optional)
Electrical System Parameters
power supply	12V
UI	color display
operation control	integrated control
control bus	CAN
Three boxes volume
Fuel tank	190L
Hydraulic tank	200L
water tank	600L
walking parameters
paving speed	0-11.6m/min
Driving speed	0-1.2km/h
Climbing ability (working state)	20%
Track Steering Angle	25⁰(left),36⁰(left)
Flatness	3mm/3m
Vehicle height adjustment
Hydraulic height adjustment	900mm
mechanical height adjustment	230mm
Basic Paving Parameters
The maximum paving width of the ditch	2100mm
The maximum paving depth of the ditch	850mm
Pavement maximum paving width	2000mm
Pavement Maximum Paving Thickness	200mm
Maximum working capacity	50m³/h
Total Weight	6t
Overall Dimensions (Working/Transportation)
Total length	4450mm/4450mm
Total width	2720mm/(road 2430mm,container 1900mm)
Total height	3400mm/(road 2200mm,container 2200mm)
Vibrator
Number of ports	6
vibrator form	Hydraulic Straight Vibrator
Adjustment method	Manual scaling
