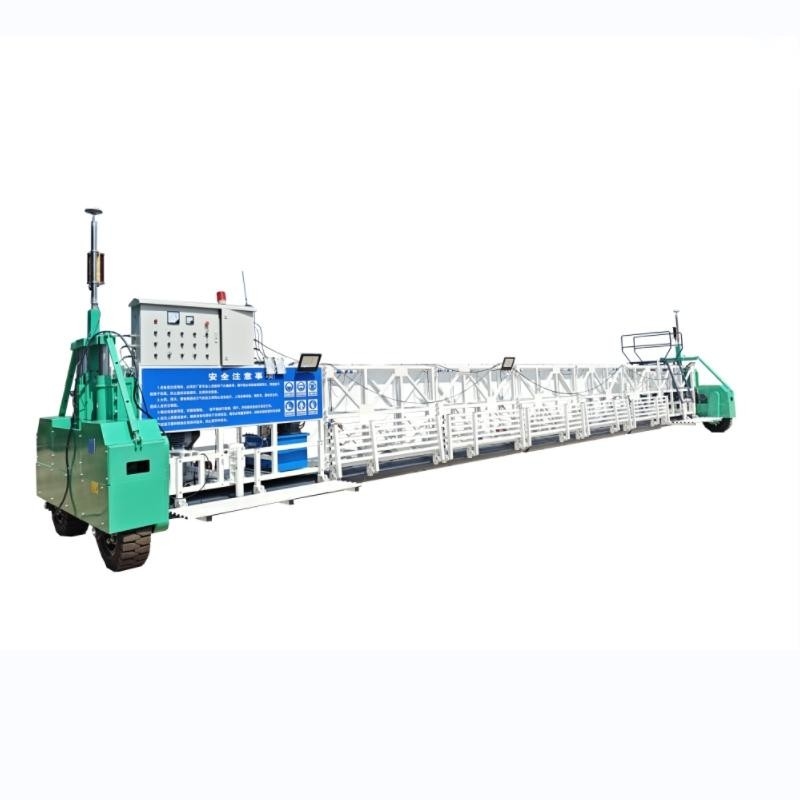

Modular Sliding Formwork Concrete Slipform Paver Machine 16m Width

Name: Modular Sliding Formwork Concrete Slipform Paver Machine 16m Width
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMP-1200
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMP-1200

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Container-shipping

Delivery Time: 15-30 days

Payment Terms: L/C,T/T

Supply Ability: 2 psc per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Sliding Formwork Concrete Pavement Machine, Modular Sliding Concrete Pavement Machine, 16m Width Concrete Slip Form Paver


Condition:	New	Paving Speed:	0-5m/min
Walking Speed:	0-10m/min	Type:	Road Construction Equipment
Rod Shaft Diameter:	φ219mm	Crawler Type:	Rubber Track
Control System:	Automatic	Paving Width:	≤16 Meters
Paving Thickness:	0-350 Mm

Condition:	New
Paving Speed:	0-5m/min
Walking Speed:	0-10m/min
Type:	Road Construction Equipment
Rod Shaft Diameter:	φ219mm
Crawler Type:	Rubber Track
Control System:	Automatic
Paving Width:	≤16 Meters
Paving Thickness:	0-350 Mm

Modular Sliding Formwork Concrete Slipform Paver Machine 16m Width

Modular Sliding Formwork Concrete Pavement Machine 16m Width

Modular concrete sliding formwork paver with a width of 16 meters, designed for smooth and compact paving of bridges. This truss-type bridge paver has extensive applications in bridge construction projects.

Key Applications

Prefabricated bridge components: Used for concrete paving of prefabricated box girders and T-beams to ensure surface flatness and compactness, improving component quality and production efficiency.
Cast-in-place bridge construction: Enables continuous paving of large-area concrete for cast-in-place box girders and continuous girders, reducing construction joints and enhancing structural integrity.

Product Features

Modular truss assembly with split composite roller shaft connection for easy installation and width adjustment to accommodate different bridge deck widths
Tire walking mechanism operates directly on bridge deck steel mesh with hydraulic elevation adjustment via digital leveling instrument
Dual vibrating rollers with leveling and slurry lifting functions, adjustable height and inclination angle
Shock-absorbing pad handwheel for transverse slope adjustment
Integrated flushing system for simplified maintenance
Built-in lighting fixtures for nighttime and tunnel construction
High-frequency vibration pushing plate maintains concrete in light, flowing state with uniform material level
Efficient compaction design ensures concrete density and works effectively with low slump concrete
Large-diameter high-speed rollers provide long wear life, flat transverse end faces, and excellent linear/slurry effects
High horsepower output maintains stable, high-speed paving for consistent construction quality and efficiency

Technical Specifications

Parameter	Value
Power Supply	380V
Equipped Power	≥28KW
Rated Power of Roller Drive Motor	7.5kW
Rated Power of Walking Drive Motor	4x1.1kW
Display Interface	10" Touch Color Display
Operation Control	Electrical Cabinet Control + Software Integration
Paving Speed	0-5m/min
Walking Speed	0-10m/min
Spread Width	≤16m
Water Tank Capacity	300L
Hydraulic Oil Volume	80L
Rod Shaft Diameter	φ219mm
Rod Shaft Speed	240rpm
Vibration Frequency	≥3000次/min
Walking Style	Four Wheel Drive Rubber Wheel
Elevation Control Method	Laser Automatic Positioning
Laser Positioning Method	Encoder Automatic Real-time Tracking

Project Examples
