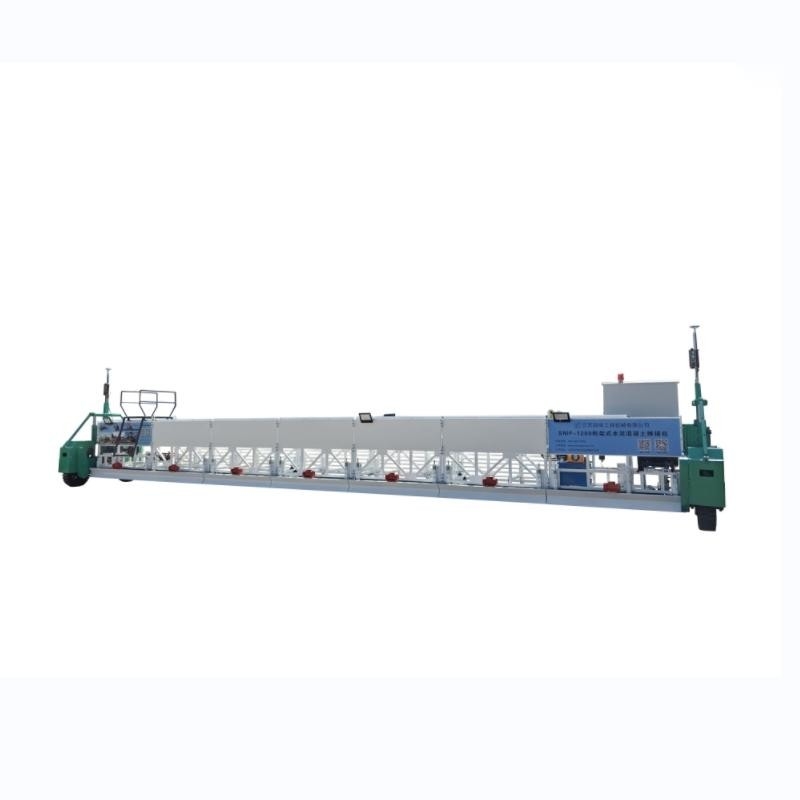

Modular Concrete Sliding Mode Paver 16m Width Slip Form Machine

Name: Modular Concrete Sliding Mode Paver 16m Width Slip Form Machine
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMP-1200
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMP-1200

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Container-shipping

Delivery Time: 15-30 days

Payment Terms: L/C,T/T

Supply Ability: 1 psc per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Modular Concrete Sliding Mode Paver, 16m Width Slip Form Machine, 16m Slip Form Machine


Condition:	New	Paving Speed:	0-5m/min
Walking Speed:	0-10m/min	Application Field:	Tunnel Construction
Rod Shaft Diameter:	φ219mm	Paving Width:	≤16 Meters
Paving Thickness:	0-350 Mm

Condition:	New
Paving Speed:	0-5m/min
Walking Speed:	0-10m/min
Application Field:	Tunnel Construction
Rod Shaft Diameter:	φ219mm
Paving Width:	≤16 Meters
Paving Thickness:	0-350 Mm

Modular Concrete Sliding Mode Paver 16m Width Slip Form Machine

This modular concrete sliding mode paver with a 16-meter width is designed for smooth and compact paving in tunnel construction applications.

The truss-type bridge paver has extensive applications in tunnel construction, including:

Tunnel lining construction: Provides efficient paving for concrete lining of tunnel inner walls, ensuring uniformity and stability while improving support and waterproof performance.
Tunnel invert arch construction: Used for concrete paving at the tunnel bottom to quickly form a solid foundation structure and ensure overall tunnel stability.

With its high efficiency, precision, and adaptability to complex working conditions, this equipment plays a vital role in bridge and tunnel construction, promoting project progress and quality improvement.

Key Features

Modular truss assembly with split composite roller shaft connection for easy installation and width adjustment to accommodate different bridge deck widths.
Tire walking mechanism with hydraulic cylinder adjustment controlled by high-precision digital leveling instrument for elevation control.
Dual vibrating rollers with leveling and slurry lifting functions, adjustable height and inclination angle with shock-absorbing pad handwheel.
Integrated flushing system for simplified maintenance.
Built-in lighting fixtures for nighttime and tunnel construction visibility.
High-frequency vibration pushing plate maintains concrete in optimal flow state with uniform material level.
Efficient compaction design ensures concrete density, even with low slump concrete.
Large-diameter high-speed rollers provide extended wear resistance and excellent linear/slurry effects.
High horsepower output maintains stable, high-speed paving for quality construction and efficiency.

Technical Specifications

Parameter	Value
Power Supply	380V
Equipped Power	≥28KW
Roller Drive Motor Power	7.5kW
Walking Drive Motor Power	4x1.1kW
Display Interface	10" Touch Color Display
Operation Control	Electrical Cabinet + Software Integration
Paving Speed	0-5m/min
Walking Speed	0-10m/min
Spread Width	≤16m
Water Tank Capacity	300L
Hydraulic Oil Volume	80L
Rod Shaft Diameter	φ219mm
Rod Shaft Speed	240rpm
Vibration Frequency	≥3000次/min
Walking Style	Four Wheel Drive Rubber Wheel
Elevation Control	Laser Automatic Positioning
Laser Positioning Method	Encoder Automatic Real-time Tracking

Project Applications
