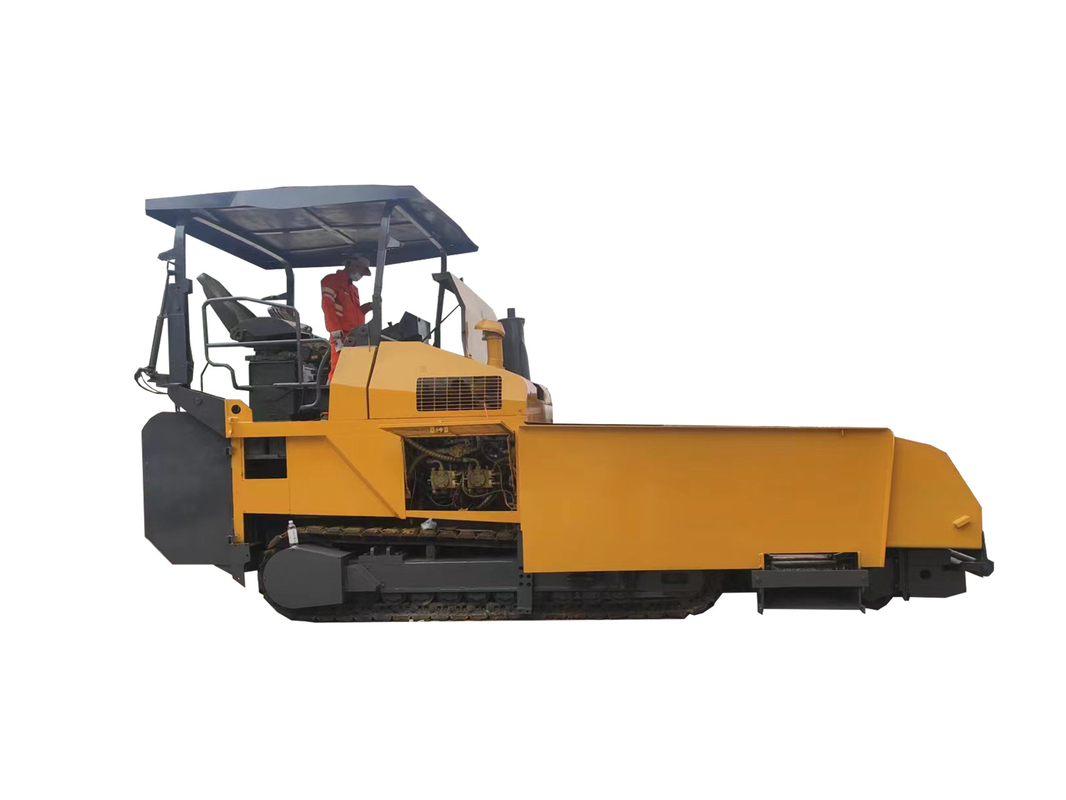

Customized Design Slipform Paver Machine For Soil Shoulder Construction

Name: Customized Design Slipform Paver Machine For Soil Shoulder Construction
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: TLJ-1000
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO-9001

Model Number: TLJ-1000

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Container

Delivery Time: 10-15 days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Customized Design Slipform Paver, Soil Shoulder Construction Slipform Paver, Construction Slipform Paver Machine


Travel Speed:	0-33 M/min	Paving Speed:	0-10 M/min
Load Capacity Of Hopper:	12 T	Maximum Feeding Speed:	20 M/min

Travel Speed:	0-33 M/min
Paving Speed:	0-10 M/min
Load Capacity Of Hopper:	12 T
Maximum Feeding Speed:	20 M/min

Customized Design Slipform Paver Machine For Soil Shoulder Construction

Customized Design Slipform Paver for Soil Shoulder Construction

Summary:

A soil shoulder paver is a specialized equipment used for soil shoulder construction, with the following significant characteristics:
1. Targeted design: Its size and structure are customized for the narrow space and special shape of the earth shoulder, which can meet the construction requirements of the earth shoulder.

2. Efficient construction: significantly improving construction efficiency, compared to manual paving, it can complete the same length of soil shoulder construction in a shorter time.

3. Stable paving quality: Ensure the flatness and compactness of the soil shoulder, and reduce maintenance costs in the later stage.

4. Flexible operation: It can be adjusted and operated flexibly according to the actual situation on site to adapt to different construction environments. Whether on flat roads or on slopes, paving work can be completed smoothly.

5. Save manpower: reduces reliance on a large amount of manual labor and reduces the labor intensity of construction personnel.

6. Cost control: Reasonable equipment prices and efficient construction efficiency contribute to overall project cost control.

In short, the soil shoulder paver plays an important role in road construction, providing strong guarantees for the high-quality construction of soil shoulders.

Technical parameters:

item	unit		Parameters
Product model			TLJ1000
1. Power system parameters (original vehicle parameters, taking Vogler 1800 as an example)
Engine brand			Deutz diesel engine
Engine model			Modified engine model
Engine power	kw/r/min		120/2300
2. Walking system
Maximum paving speed	m/min		10
Maximum walking speed	km/h		2
3. Material conveying system
Load capacity of hopper	t		12
Inner width	mm		3050
Maximum feeding speed	m/min		20
4. Shoulder soil mold device
Quantity of compactors	台		2
Width hydraulic adjustable		mm	70~1000
Maximum thickness	mm		500
Thickness hydraulic adjustment range	mm		1st gear 0~380 /2nd gear 220~500
Width hydraulic adjustment amount	mm		300
