2500mm Wide Slipform Paver For Anti Collision Walls And Drainage Ditches

Name: 2500mm Wide Slipform Paver For Anti Collision Walls And Drainage Ditches
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-5500
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO 9001

Model Number: SMC-5500

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: Container shipping

Delivery Time: 30-45 work days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                2500mm Wide Slipform Paver, Anti Collision Walls Slipform Paver, Drainage Ditches slip form paver


Paving Width:	2.5 M	Paving Height:	1.5 M
Engine Power:	118 KW	Model:	Customized
Paving Speed:	0-10 M/min	Travel Speed:	0-2 Km/h
Operating Weight:	15 T

Paving Width:	2.5 M
Paving Height:	1.5 M
Engine Power:	118 KW
Model:	Customized
Paving Speed:	0-10 M/min
Travel Speed:	0-2 Km/h
Operating Weight:	15 T

2500mm Wide Slipform Paver For Anti Collision Walls And Drainage Ditches

Professional Slipform Paver for Anti-Collision Walls and Drainage Ditches

Usage conditions:

1. Highway and municipal road construction fields: curbs, central isolation belt, anti-collision walls, slope protection, drainage ditches, cement pavements, etc.

2. Railway construction field: retaining walls, drainage ditches, etc.

3. Agriculture and water conservancy construction fields: anti-seepage canals, slope protection and pavement hardening, etc.

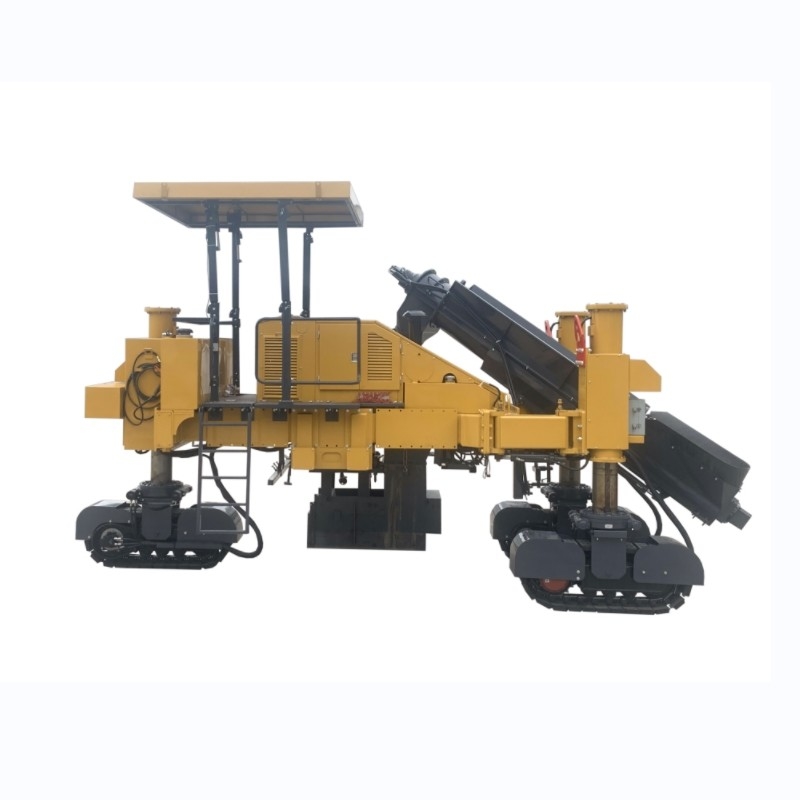

2500mm Wide Slipform Paver For Anti Collision Walls And Drainage Ditches 0

Working principle
The cement concrete is compacted to a certain degree through high-frequency vibration of a vibrating rod, and then discharged into shape through a mold. The machine comes with a diesel generator set and a walking system, which does not require external force.
Specifically, during the construction process, cement concrete is continuously pushed into the forming mold, and through the rotation and compression of the spiral blades, the concrete is formed into the desired shape and size inside the mold. At the same time, the high-frequency vibration of the vibrating rod can exhaust the air in the concrete, improve the compactness and strength of the concrete, and thus ensure the quality of the curbstone.

Technical Parameters:

No.	Project	Unit	Parameter
Basic performance parameters
1	Max paving width	cm	300
2	Max paving height	cm	180
3	Work speed	m/min	0～10
4	Driving speed	km/h	0～2
5	Theoretical productivity	m³/h	90
6	hopper capacity	m³	2～10(Depends on the width of the mold)
7	Climbing ability	％	≥20
8	Diesel tank	L	230+120(optional)
9	Water tank	L	500
10	Hydraulic oil tank	L	300
Engine performance parameters
11	Engine model	/	Shangchai SC4H160.5G4
12	Engine power	kW r/min	118Kw/2200
13	Engine type	/	4-cylinder water-cooled
14	Emission standard	/	stage 4(stage 3 is optional)
Size parameters
15	Dimensions (L x W x H)	mm	7000×3550×3600
16	Transport (L x W x H)	mm	7000×2250×2860
17	Track (L x W x H)	cm	163x30x63
Weight parameters of the whole machine
18	Weight	kg	15000
Homework performance parameters - feeding
22	Spiral device speed	r/min	0～70
23	Spiral diameter	cm	42
24	Belt device speed	r/min	0～100
Homework Performance Parameters - Mold
25	Number of molds	pcs	1
26	Construction form	/	Left side paving(optional)
Performance parameters for homework - vibration compaction
28	Vibration rod frequency	Hz	0～167
32	Number of vibrator	pcs	5
Homework Performance Parameters - Cleaning
33	Cleaning form	/	High pressure cleaning
34	Cleaning pressure	Mpa	7
Hydraulic system
35	Quantity of hydraulic pumps	pcs	2
36	Hydraulic oil cooling	/	Large size radiator, forced air cooling
37	Maximum filtering accuracy	/	10μm
