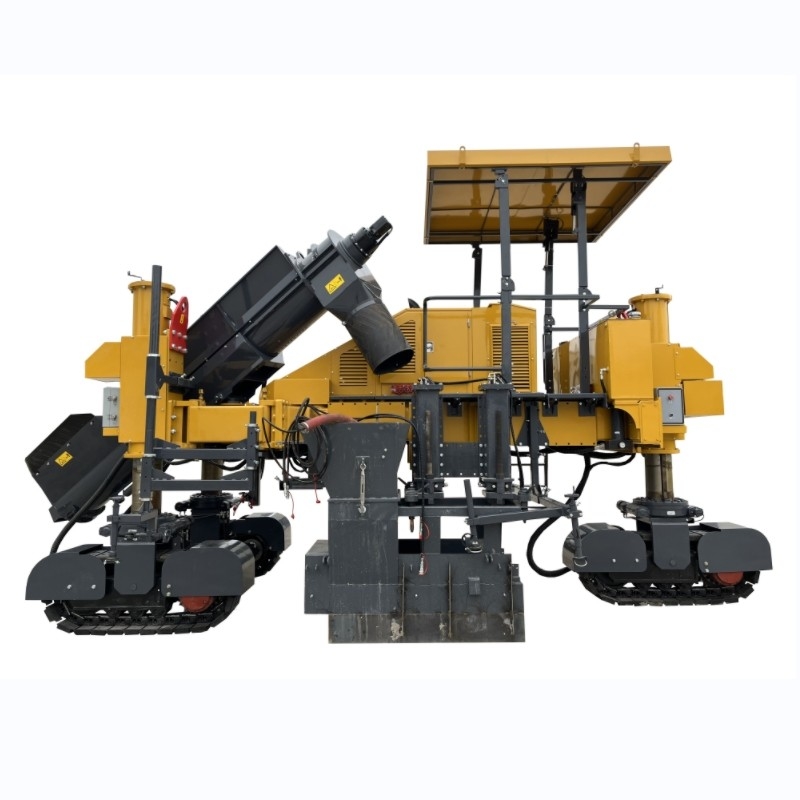

Mechanized Slipform Paver 3000mm Wide Slip Form Concrete Machine

Name: Mechanized Slipform Paver 3000mm Wide Slip Form Concrete Machine
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-5500
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-5500

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: Container shipping

Delivery Time: 30-45 work days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Mechanized Slipform Paver, 3000mm Slip Form Concrete Machine, Slipform Paver 3000mm Wide


Paving Width:	3m	Paving Height:	1800 Mm
Engine Power:	118 KW	Model:	Customized
Paving Speed:	0-10 M/min	Travel Speed:	0-33 M/min
Fuel Tank Capacity:	230 L	Overall Dimensions:	7 X 2.25 X 2.86 M
Operating Weight:	15,000 Kg

Paving Width:	3m
Paving Height:	1800 Mm
Engine Power:	118 KW
Model:	Customized
Paving Speed:	0-10 M/min
Travel Speed:	0-33 M/min
Fuel Tank Capacity:	230 L
Overall Dimensions:	7 X 2.25 X 2.86 M
Operating Weight:	15,000 Kg

Mechanized Slipform Paver 3000mm Wide Slip Form Concrete Machine

Mechanized Slipform Paver for Reduced Labor Intensity in Tunnel Engineering

Usage Conditions

Highway and municipal road construction fields: curbs, central isolation belt, anti-collision walls, slope protection, drainage ditches, cement pavements
Railway construction field: retaining walls, drainage ditches
Agriculture and water conservancy construction fields: anti-seepage canals, slope protection and pavement hardening

Construction Advantages in Tunnel Engineering

Strong adaptability: Three-track design provides stability and passability in complex tunnel terrain
One time molding: Completes transportation, compaction, paving, extrusion molding, and smoothing in continuous operation
High molding quality: Creates regular, smooth tunnel lining surfaces with minimal defects
High mechanization: Reduces labor requirements and human error in construction quality
Continuous operation: Minimizes construction joints for improved structural integrity and waterproofing
Precise dimensional control: Meets strict tunnel lining size and shape requirements
Versatile operation: Adaptable for different cement structures with mold changes

Technical Specifications

No.	Project	Unit	Parameter
Basic Performance Parameters
1	Max paving width	cm	300
2	Max paving height	cm	180
3	Work speed	m/min	0-10
4	Driving speed	km/h	0-2
5	Theoretical productivity	m³/h	90
6	Hopper capacity	m³	2-10 (Depends on mold width)
7	Climbing ability	%	≥20
8	Diesel tank	L	230+120 (optional)
9	Water tank	L	500
10	Hydraulic oil tank	L	300
Engine Performance Parameters
11	Engine model	-	Shangchai SC4H160.5G4
12	Engine power	kW r/min	118Kw/2200
13	Engine type	-	4-cylinder water-cooled
14	Emission standard	-	Stage 4 (Stage 3 optional)
Size Parameters
15	Dimensions (L * W * H)	mm	700035503600
16	Transport (L * W * H)	mm	700022502860
17	Track (L * W * H)	cm	1633063
Weight Parameters
18	Weight	kg	15000
