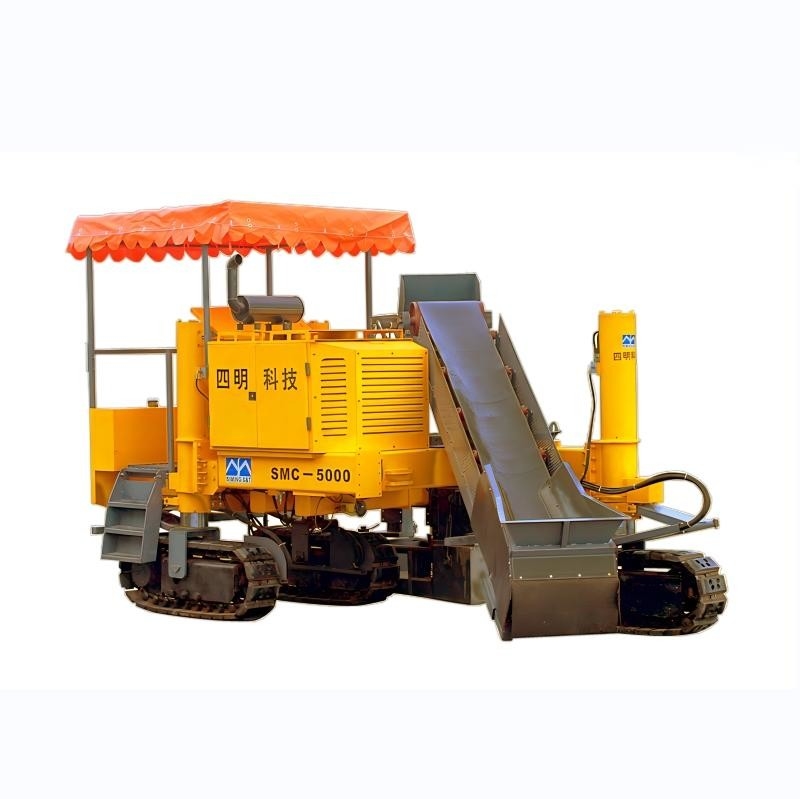

Side Ditches And Slope Protection Slipform Paver Machine For Railway Subgrade

Name: Side Ditches And Slope Protection Slipform Paver Machine For Railway Subgrade
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-5000
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-5000

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: Container shipping

Delivery Time: 30-45 work days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Slope Protection Slipform Paver, Side Ditches Slipform Paver, Railway Subgrade Slipform Paver Machine


Paving Width:	0-2.5 M	Max Paving Height:	1.3 M
Engine Power:	162 KW	Model:	Customized
Paving Speed:	0-10.5 M/min	Travel Speed:	0-35 M/min
Overall Dimensions:	5400 X 2150 X 2700 Mm	Operating Weight:	9,000 Kg

Paving Width:	0-2.5 M
Max Paving Height:	1.3 M
Engine Power:	162 KW
Model:	Customized
Paving Speed:	0-10.5 M/min
Travel Speed:	0-35 M/min
Overall Dimensions:	5400 X 2150 X 2700 Mm
Operating Weight:	9,000 Kg

Side Ditches And Slope Protection Slipform Paver Machine For Railway Subgrade

Product Description

The Side Ditches and Slope Protection Slipform Paver is a versatile machine designed for railway subgrade construction with wide application across multiple engineering fields.

Application Fields

Road Engineering: Highway shoulders, side ditches, crash barriers, sidewalks, and road dividers
Airport Construction: Runway edges, taxiway edges, and drainage facilities
Water Conservancy Engineering: Channel lining for irrigation/flood discharge channels and embankment slope protection
Port Terminals: Dock shoreline protection and drainage ditches
Railway Engineering: Side ditches and slope protection for railway subgrade
Industrial Parks: Internal roads and drainage facilities
Underground Pipe Galleries: Concrete structures around pipe galleries

Key Features

Quick Positioning: Hydraulic cylinder adjusts mold position for rapid setup
Adjustable Conveying: Screw feeding device with hydraulic tilt and position adjustment
Track Offset Function: Adjustable track spacing for transportation and increased paving width
Multi-Function Capability: Mold offset for curbs/gutters or center position for various surfaces
Multi-Mode Operation: Various mold options for different construction requirements
Full Hydraulic Drive: Energy-efficient system with imported components
Optional Milling Function: Hydraulic motor-driven leveler for hard roadbed preparation

Technical Specifications

Basic Performance Parameters
1	Max paving width	cm	250
2	Max paving height	cm	130
3	Work speed	m/min	0-16
4	Driving speed	km/h	0-2.1
5	Theoretical productivity	m³/h	90
6	Hopper capacity	m³	2-10 (width dependent)
7	Climbing ability	%	20
8	Diesel tank	L	115
9	Water tank	L	284
10	Hydraulic oil tank	L	189
Engine Performance Parameters
11	Engine model	-	Weichai WP4.1G
12	Engine power	kW r/min	73.5Kw/2300
13	Engine type	-	4-cylinder water-cooled
14	Emission standard	-	Stage 3
Size Parameters
15	Dimensions (LWH)	mm	540031503300
16	Transport (LWH)	mm	540021502700
17	Track (LWH)	cm	1633063
Weight Parameters
18	Weight	kg	9000
