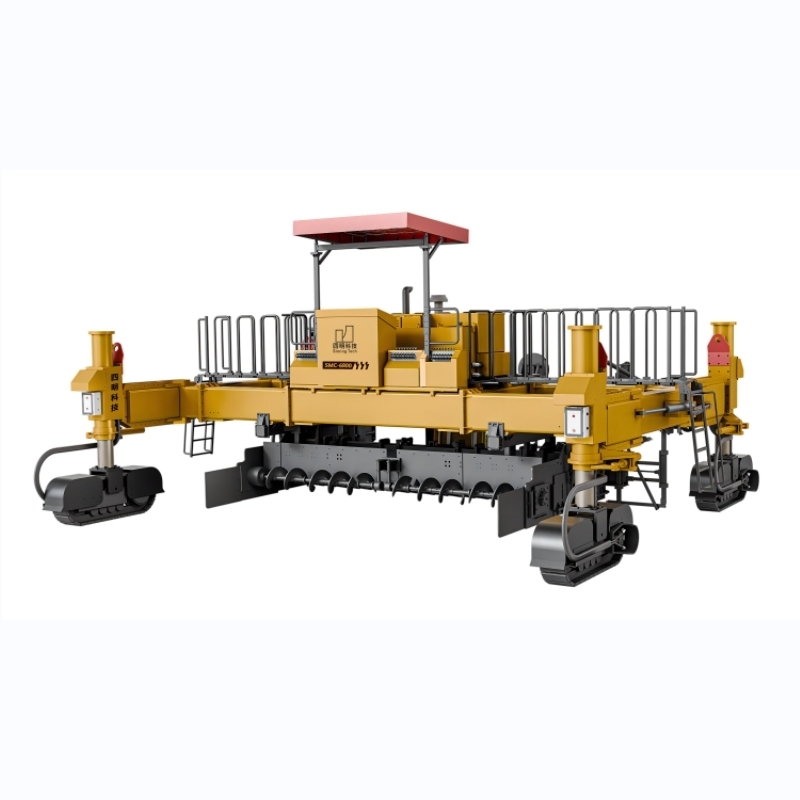

SMC-6800 8m Slipform Paver for Highway Airport Railway Construction

Product Details

Place of Origin: Jiangsu, China

Brand Name: Siming

Certification: ISO9001/CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $389,800

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                8m slipform paver for highways, slipform paver for airport construction, railway construction slipform paver


Weight:	30000 Kg	Paving Height:	0-450mm
Paving Width:	3500-8000mm	Driving Speed:	0-1.5 Km/h
Paving Speed:	0-7.5 M/min	Flatness:	±3 Mm/3m
Vibrator Frequency:	0-167 Hz	Fuel Tank:	370L
Water Tank:	400L (standard) + 140L*4 (optional)	Engine:	Shangchai SC7H240G4
Rate Power:	177Kw/2200rpm	Emission Standard:	Phase Ⅳ (Phase Ⅲ Optional)
Transport Size:	13174028003220 Mm	Vibrator Circuits:	16 (standard) + 6 (optional)
Feed System:	Spiral

Weight:	30000 Kg
Paving Height:	0-450mm
Paving Width:	3500-8000mm
Driving Speed:	0-1.5 Km/h
Paving Speed:	0-7.5 M/min
Flatness:	±3 Mm/3m
Vibrator Frequency:	0-167 Hz
Fuel Tank:	370L
Water Tank:	400L (standard) + 140L*4 (optional)
Engine:	Shangchai SC7H240G4
Rate Power:	177Kw/2200rpm
Emission Standard:	Phase Ⅳ (Phase Ⅲ Optional)
Transport Size:	13174028003220 Mm
Vibrator Circuits:	16 (standard) + 6 (optional)
Feed System:	Spiral

SMC-6800 8m Slipform Paver for Highway Airport Railway Construction

SMC-6800 Four Track Field Slipform Paver 8m Multi-Function Concrete Paver with Paving Width New Condition Core Component Engine

Product Specifications

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Engine, fluid pump, vibrating spear
Weight	30000 kg
Warranty	1 Year
UNIQUE SELLING POINT	High operating efficiency
Paving height	0-450mm
Paving width	3500-8000mm
Driving Speed	0-1.5 km/h
Paving Speed	0-7.5 m/min
Condition	New
Warranty of core components	3 Year
Applicable Industries	Airport runway, highway, railway
Marketing Type	Hot Product

Product Description

The SMC-6800 cement concrete slip form paver is a multi-purpose cement concrete construction equipment independently developed by our company. It is widely used in the construction fields of various grades of highways, high-speed railway subgrade, airport and rail transit concrete base. It replaces the traditional process and greatly improves the construction quality and efficiency of the above cement concrete structures.

Technical Specifications

Paving width	3500-8000 mm
Paving height	0-450 mm
Flatness	±3 mm/3m
Paving Speed	0-7.5 m/min
Driving speed	0-1.5 km/h
Vibrator brand	WYCO
Vibrator interface	16
Vibrator frequency	0-167 Hz
Fuel tank	370L
Water tank	400L (standard) + 140L*4 (optional)
Engine	Shangchai SC7H240G4
Rate power	177Kw/2200rpm
Emission standard	Phase Ⅳ (Phase Ⅲ optional)
Feed system	Spiral
Weight	30 t
Transport size (LWH)	13174028003220 mm

Functional Features

Power System

Equipped with a water-cooled engine, powerful and reliable in operation
Equipped with a parallel three in one large-sized radiator, forced air cooling, and significant heat dissipation effect

Hydraulic System

Four pump load sense hydraulic system from well-known international brands
The inlet and outlet ports of the pump are equipped with high quality filters

Electronic Control System

Color graphic and text display on the main console with fault diagnosis, working status, and alarm
The steering, grade, and slope of slipform paver are electronic automatic control, and the sensors and controllers communicate by CAN-bus
Configure four longitudinal slope sensors and two steering sensors

Traveling Device

Four-track hydraulic drive, high traction
Load sense hydraulic drive with low system heating

Vibration Compaction System

High quality hydraulic vibrator with square head shell
Equipped with 16 standard vibration circuits (additional 6 circuits option), with stepless frequency adjustable from 0 to 167Hz

Concrete Spreading System

Use a dump truck to directly unload the concrete in front of the paver, and spread the irregular concrete pile with an excavator
Two hydraulic driven spreading augers with independent control and infinitely adjustable revolution

Water System

Type: High pressure washer with water gun
One Standard water tank capacity is 400L, four 130L tanks option

Tamper Bar Device

Hydraulic driven stepless frequency regulation
Push down the surface coarse aggregate to create a surface slurry layer

Frequently Asked Questions

1. What kind terms of payment can be accepted?

For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2. What certificates are available in Machinery?

For the certificate, we have ISO certificate

3. What about the delivery time?

7-30 days after receiving the deposit

4. What about the warranty time?

12 months after shipment

5. What about the Minimum Order Quantity?

The MOQ is 1 pcs
