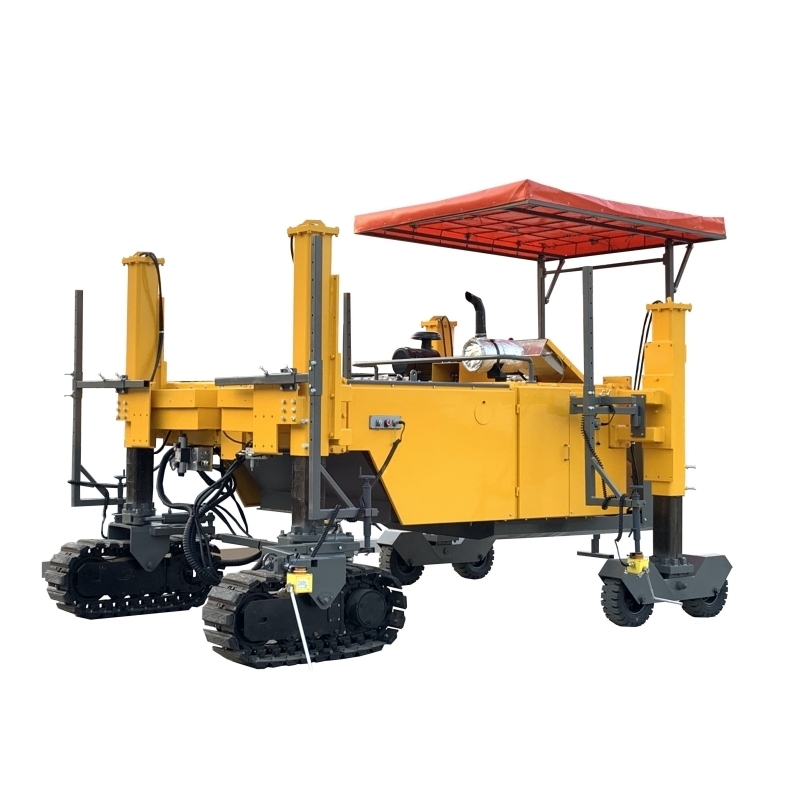

SMC-3200 Slipform Paver 2100mm Width 850mm Depth 6t Weight

Product Details

Place of Origin: Jiangsu, China

Brand Name: Siming

Certification: ISO9001/CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$58,500

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                2100mm width slipform paver, 850mm depth slipform paver, 6 ton weight slipform paver


Weight:	6000 Kg	Maximum Paving Depth:	850mm
Maximum Paving Width:	2000mm	Maximum Paving Thickness:	200mm
Paving Width Range:	0-2100mm	Driving Speed:	0-1.2km/h
Paving Speed:	0-11.6m/min	Fuel Tank Volume:	190L
Hydraulic Tank Volume:	200L	Water Tank Volume:	600L
Climbing Ability:	20%	Track Steering Angle:	25°(left),36°(left)
Flatness:	3mm/3m	Hydraulic Height Adjustment:	900mm
Mechanical Height Adjustment:	230mm

Weight:	6000 Kg
Maximum Paving Depth:	850mm
Maximum Paving Width:	2000mm
Maximum Paving Thickness:	200mm
Paving Width Range:	0-2100mm
Driving Speed:	0-1.2km/h
Paving Speed:	0-11.6m/min
Fuel Tank Volume:	190L
Hydraulic Tank Volume:	200L
Water Tank Volume:	600L
Climbing Ability:	20%
Track Steering Angle:	25°(left),36°(left)
Flatness:	3mm/3m
Hydraulic Height Adjustment:	900mm
Mechanical Height Adjustment:	230mm

SMC-3200 Slipform Paver 2100mm Width 850mm Depth 6t Weight

SMC-3200 Trench Slip-form Paver Concrete Paver Products

Product Specifications

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Engine, hydraulic pump, vibrating spear
Weight	6000 kg
Warranty	1 Year
Maximum paving depth	850mm
Pavement maximum paving width	2000mm
Maximum Paving Thickness	200mm
Paving width	0-2100mm
Driving Speed	0-1.2km/h
Paving Speed	0-11.6m/min
Warranty of core components	3 years
Condition	New
Applicable Industries	dam filling, dam, Tunnel roadbed, gutterway

Product Overview

The SMC-3200 cement concrete slipform paver is a specialized construction equipment independently developed for small and medium-sized concrete structures. This advanced machine offers significant advantages over traditional prefabrication and fixed mold cast-in-place processes, delivering faster construction speed, higher efficiency, and superior quality.

Key Features

Powerful Performance: Equipped with strong engine power, full electronic control, and full hydraulic drive system with two crawler drives. Includes an automatic steering and leveling control system for precise operation.

Versatile Operation: Capable of completing vibration compaction, paving, forming, and other processes of cement concrete structures in a single pass.

Technical Specifications

Three boxes volume
Fuel tank	190L
Hydraulic tank	200L
Water tank	600L
Walking parameters
Paving speed	0-11.6m/min
Driving speed	0-1.2km/h
Climbing ability (working state)	20%
Track Steering Angle	25°(left),36°(left)
Flatness	3mm/3m
Vehicle height adjustment
Hydraulic height adjustment	900mm
Mechanical height adjustment	230mm
Basic Paving Parameters
The maximum paving width of the ditch	2100mm
The maximum paving depth of the ditch	850mm
Pavement maximum paving width	2000mm
Pavement Maximum Paving Thickness	200mm
Maximum working capacity	50m3/h
Total Weight	6t
Overall Dimensions
Total length	4450mm/4450mm
Total width	2720mm/(road 2430mm, container 1900mm)
Total height	3400mm/(road 2200mm, container 2200mm)
Vibrator
Number of ports	6
Vibrator form	Hydraulic Straight Vibrator
Adjustment method	Manual scaling

Operational Modes

The SMC-3200 offers flexible walking modes to adapt to various construction conditions:

Two Crawler Drive: When roadbed conditions permit, two crawlers can be installed on the front side of the paver for embankment walking.

Four-Wheel Driven Walking: Alternative configuration for different terrain requirements.

Transportation

The SMC-3200 meets container transportation requirements. For transport, the configuration can be modified by changing to a single crawler belt and adjusting the rear column installation position inward.

Frequently Asked Questions

Q: What kind terms of payment can be accepted?

A: We accept L/C, T/T, D/A, D/P, and Western Union payments.

Q: What certificates are available for the machinery?

A: Our equipment comes with ISO certification.

Q: What is the delivery time?

A: Delivery typically takes 7-30 days after receiving deposit.

Q: What is the warranty period?

A: The standard warranty is 12 months after shipment (3 years for core components).

Q: What is the Minimum Order Quantity?

A: MOQ is 1 unit.
