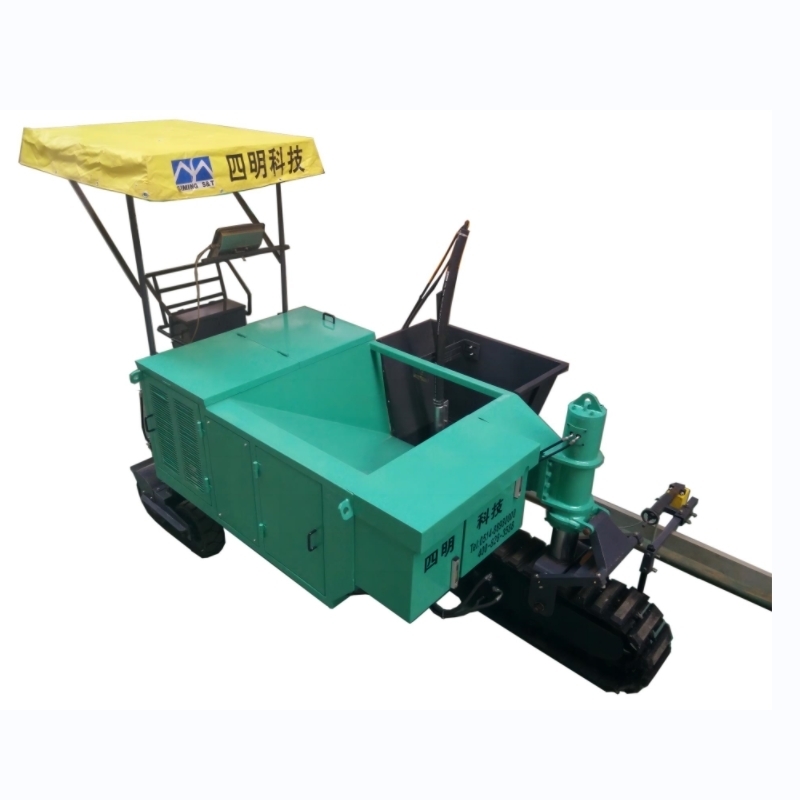

SMC-521 Self-Propelled Slipform Paver for Highway Curbstone Paving

Product Details

Place of Origin: Jiangsu, China

Brand Name: Siming

Certification: ISO9001/CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $22,300

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                self-propelled slipform paver, highway curbstones paving machine, SMC-521 slipform paver


Weight:	2100 Kg	Engine Model:	Yanmar 3TNV88/Quanjiao QC485G
Hydraulic Pump:	American Sauer Variable Displacement Pump KRR038	Paving Width:	0-1200mm
Paving Height:	0-450mm	Paving Size:	Curbstone Width 125 * Height 40
Paving Speed:	0~12m/min	Driving Speed:	0~33m/min
Transportation Dimensions:	Length 320 X Width 150 X Height 130	Core Components:	Engine, Hydraulic Pump, Vibrating Spear
Fully Hydraulic System:	Yes	Single Track Drive:	Hydraulic
Automatic Leveling:	High-precision	Automatic Steering:	Yes
Built-in Vibration Rod:	Yes

Weight:	2100 Kg
Engine Model:	Yanmar 3TNV88/Quanjiao QC485G
Hydraulic Pump:	American Sauer Variable Displacement Pump KRR038
Paving Width:	0-1200mm
Paving Height:	0-450mm
Paving Size:	Curbstone Width 125 * Height 40
Paving Speed:	0~12m/min
Driving Speed:	0~33m/min
Transportation Dimensions:	Length 320 X Width 150 X Height 130
Core Components:	Engine, Hydraulic Pump, Vibrating Spear
Fully Hydraulic System:	Yes
Single Track Drive:	Hydraulic
Automatic Leveling:	High-precision
Automatic Steering:	Yes
Built-in Vibration Rod:	Yes

SMC-521 Self-Propelled Slipform Paver for Highway Curbstone Paving

SMC-521 Self-propelled Sliding Mode Paver Kerb Stone Machine Highway Guardrail Forming Machine for Monolithic

Product Specifications

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Engine, hydraulic pump, vibrating spear
Weight	2100 kg
Warranty	1 Year
UNIQUE SELLING POINT	Fully hydraulic system
Engine Model	Yanmar 3TNV88/Quanjiao QC485G
Hydraulic pump	American Sauer variable displacement pump KRR038
Paving width	0-1200mm
Paving height	0-450mm
Paving size (cm)	curbstone width 125 * height 40
Paving speed	0~12m/min
Driving Speed	0~33m/min
Warranty of core components	3 years
Condition	New
Applicable Industries	Tunnel roadbed, gutterway, highway

Product Overview

Application Range

This model can be divided into SMC-521A (track drive) and SMC-521B (wheel drive). Suitable for the construction of highways and municipal roads, including curbs, slope protection, and drainage ditches.

Paving width

0-1250mm

Paving height

0-400mm

Engine model

Yanmar 3TNV88/Quanjiao QC485G

Hydraulic pump

American Sauer variable displacement pump KRR038

Transportation dimensions (cm)

length 320 x width 150 x height 130

Paving size (cm)

curbstone width 125 * height 40

Paving speed

0~12m/min

Driving speed

0~33m/min

Key Features

The human-machine interface is friendly and intuitive.
This machine meets the requirements of high efficiency and environmental protection, with sufficient power surplus.
Single track hydraulic drive, smooth walking, good adhesion.
Equipped with high-precision automatic leveling and automatic steering functions for accurate paving according to specified elevation and line type.
Built-in vibration rod ensures smooth surface and dense interior of the concrete after paving and forming.
Complete set of high-pressure water flushing devices and various random tools for easy field work and maintenance.
