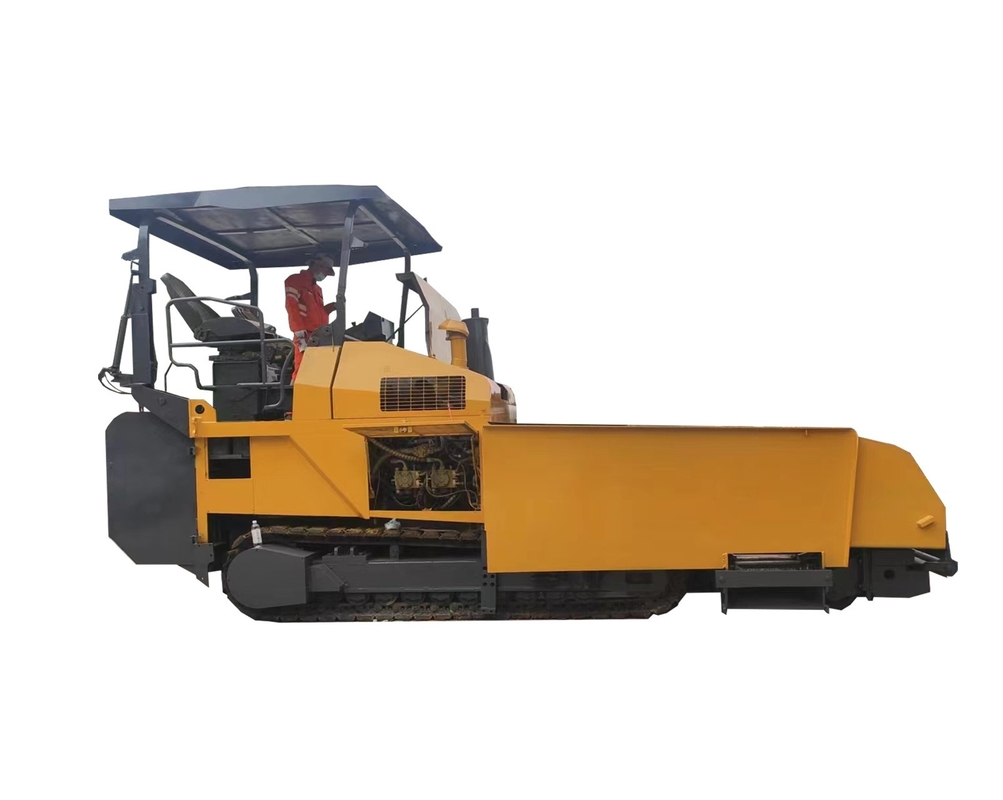

Used TLJ-1000 Soil Shoulder Paver with Deutz Engine 3500kg

Product Details

Place of Origin: Jiangsu, China

Brand Name: Siming

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $55,700

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                used TLJ-1000 soil shoulder paver, slipform paver with Deutz engine, 3500kg soil shoulder paver


Weight:	3500 Kg	Engine Power:	120-2300 Kw/r/min
Engine Model:	Modified Engine Model	Walking Speed:	2 Km/h
Paving Speed:	10m/min	Load Capacity:	12t
Inner Width:	3050mm	Feeding Speed:	20m/min
Compactors Quantity:	2 Units	Width Adjustment:	70~1000mm
Maximum Thickness:	0~500mm	Width Adjustment Amount:	300mm
Engine Brand:	Deutz Diesel Engine	Core Components:	Engine, Hydraulic Pump, Vibrating Spear
Material Conveying:	Horizontal Feeding System

Weight:	3500 Kg
Engine Power:	120-2300 Kw/r/min
Engine Model:	Modified Engine Model
Walking Speed:	2 Km/h
Paving Speed:	10m/min
Load Capacity:	12t
Inner Width:	3050mm
Feeding Speed:	20m/min
Compactors Quantity:	2 Units
Width Adjustment:	70~1000mm
Maximum Thickness:	0~500mm
Width Adjustment Amount:	300mm
Engine Brand:	Deutz Diesel Engine
Core Components:	Engine, Hydraulic Pump, Vibrating Spear
Material Conveying:	Horizontal Feeding System

Used TLJ-1000 Soil Shoulder Paver with Deutz Engine 3500kg

TLJ-1000 Used Soil Shoulder Paver Cement Concrete Paver Slipform with Core Engine Component

Product Specifications

Attribute	Value
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Engine, hydraulic pump, vibrating spear
Weight	3500 kg
Warranty	1 Year
UNIQUE SELLING POINT	Low Maintenance Cost
Engine power	120-2300 kw/r/min
Engine model	Modified engine model
Walking speed	2 km/h
Paving speed	10m/min
Condition	Used
Warranty of core components	3 years
Applicable Industries	Highway

Product Description

The TLJ-1000 soil shoulder paver is a specialized road shoulder soil paver that has been upgraded and renovated based on the asphalt concrete paver. It inherits the constant speed and stable walking drive system of the paver, and adopts a unique lateral feeding mode to evenly input the shoulder soil into the mold material groove.

The mold can adjust the thickness and width continuously according to the process requirements of the shoulder soil, and then effectively compact the shoulder soil with front and rear compactors to achieve a density of over 90%. The use of this equipment has improved the construction process of shoulder soil, greatly enhancing the quality and efficiency of shoulder soil construction, reducing labor intensity, and especially significantly reducing construction costs.

Technical Parameters

Parameter	Value
Engine brand	Deutz diesel engine
Engine model	Modified engine model
Engine power	120-2300 kw/r/min
Maximum paving speed	10m/min
Maximum walking speed	2km/h
Load capacity of hopper	12t
Inner width	3050mm
Maximum feeding speed	20m/min
Quantity of compactors	2 units
Width hydraulic adjustable	70~1000mm
Maximum thickness	1st gear 0~380 /2nd gear 220~500mm
Width hydraulic adjustment amount	300mm

Key Features

Hydraulic System

Hydraulic components sourced from internationally renowned brands
Solenoid valves and oil cylinders are well-known brands with reliable quality and stable performance
Hydraulic power output can quickly connect hydraulic picks and other auxiliary equipment

Control System

Brand new electrical circuit system ensures high reliability and safety
Intelligent control system with LCD screen for accurate operating parameter display
Fault diagnosis display function

Material Conveying System

Hydraulic opening of the silo door for convenient and fast operation
Horizontal feeding system for continuous, fast discharge without jamming
High torque device with strong power and adjustable feeding speed up to 20 meters per minute

Mold Forming System

2 compacting vibrators with flexible and wide-range adjustments
Thickness and width can be infinitely adjusted within range by hydraulic cylinder
Quick hydraulic interface for easy disassembly and connection without oil leakage

Frequently Asked Questions

1. What kind terms of payment can be accepted?

For terms of payment, L/C, T/T, D/A, D/P, Western Union could be accepted.

2. What certificates are available in Machinery?

For the certificate, we have ISO certificate.

3. What about the delivery time?

7-30 days after receiving the deposit.

4. What about the warranty time?

12 months after shipment.

5. What about the Minimum Order Quantity?

The MOQ is 1 piece.
