2Hz Ultrasonic Construction Machine Control Systems SMC-8428

Name: 2Hz Ultrasonic Construction Machine Control Systems SMC-8428
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-8428
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-8428

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: wooden packing

Delivery Time: 1-3 days

Supply Ability: 20 psc per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                2Hz Ultrasonic Construction Machine Control, Ultrasonic Construction Machine Control Systems, Construction Machine Control Systems SMC-8428


Output Mode::	NPN, PNP	Output Waveform::	PWM Pulse Wave
Output Frequency::	2Hz	Output Current::	1.5A
Short Circuit Protection Current::	2.2A	Control Load Type::	Switch Valve

Output Mode::	NPN, PNP
Output Waveform::	PWM Pulse Wave
Output Frequency::	2Hz
Output Current::	1.5A
Short Circuit Protection Current::	2.2A
Control Load Type::	Switch Valve

2Hz Ultrasonic Construction Machine Control Systems SMC-8428

Product Overview

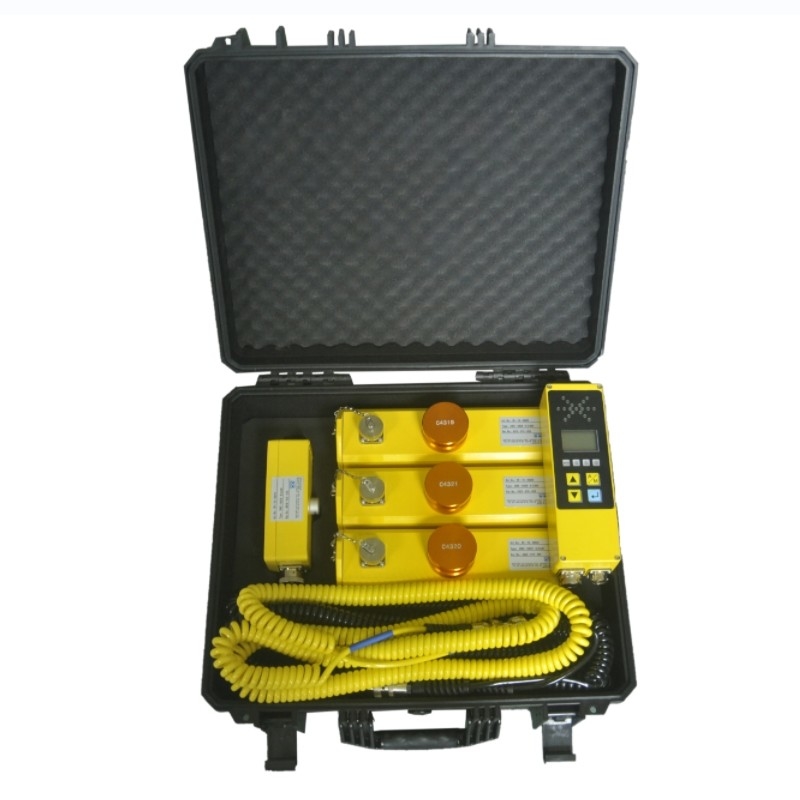

The SMC-8428 Ultrasonic Boot Balance Beam from Jiangsu Siming is a general-purpose construction machine control system designed for height and slope detection. This reliable system features simple operation and is widely used in concrete pavers, asphalt pavers, milling machines, and other construction equipment.

Key Features

Digital control mode with CAN bus protocol network compatibility
LCD screen displays real-time data with Chinese/Graphical interface
System self-diagnosis function with clear fault display
Fully interchangeable with imported brand products
Compatible with pavers, milling machines, graders and other equipment

Ultrasonic Sensor Features

6 original imported military-grade high-power probes (interchangeable)
35cm installation height from ground (50cm from newly paved asphalt)
5 test probes + 1 environmental compensation probe with large detection surface
Multiple probes work simultaneously for accurate averaging
Replaces G176 contact slope gauge for improved road smoothness

Technical Parameters

Output mode: NPN, PNP

Output waveform: PWM pulse wave

Output frequency: 2Hz

Output current: 1.5A

Short circuit protection: 2.2A

Control load type: switch valve

Measurement accuracy: 2mm

Measuring range: 19-100cm

Temperature rise: 40°

Working deviation: 0-3mm

Working temperature: -10 to +70℃

Storage temperature: -25 to +85℃

Voltage range: DC11-30V

Pin Functions

A: Ground wire | B: Power supply (+24V) | C: Rise | D: Fall

Product Configuration

No.	Name	Unit	Quantity	Remark
1	Boot controller	Only	2
2	Boot sensor	Only	6
3	Junction Box	Only	2
4	Power cable	root	2	2m spiral wire black
5	Junction box wire	root	2	2m helix yellow
6	Sensor line	root	6	Black spiral wire 2 meters 4, 1.3 meters 2
7	Handle	Only	6
8	Main controller mounting plate	indivual	2
9	Junction Box Activity Card	indivual	2
10	Long hanging rod positioning card	Only	6	M10*150 screws, 6 pieces (including flat spring washer nuts)
11	Locating ring	Only	8	Contains 6 M10*150 screws
12	U-shaped sensor mounting card	set	6	With wing nut
13	Card beam device	Only	4	M10*90 screws and nuts, 4 pieces (including flat elastic pads)
14	Hanging rod	root	6	Contains 6 U-shaped cards
15	Aluminum alloy beam/stainless steel beam	Bag	4	M1035 screws, 16 pieces (including spring washers); M1050 screws, 8 pieces (including flat spring washers)
16	Stainless Steel Inner Bracket	Bag	2	M10*40 screws, 8 pieces (including nuts)
17	Stainless steel outer bracket	Bag	2	M10*40 screws, 8 pieces (including nuts)
18	Standard Parts	Bag	1
19	Cable tie	root	20
20	Active splint			Configure according to customer needs
21	Welding plate			Configure according to customer needs
22	Tool	set	1	Including utility knife, wrenches (17-19, 16-18), torx wrenches, and 12-inch adjustable wrench
23	Material	share	1	Including instruction manual, labels, identification certificate, shipping list, and user opinion survey form
