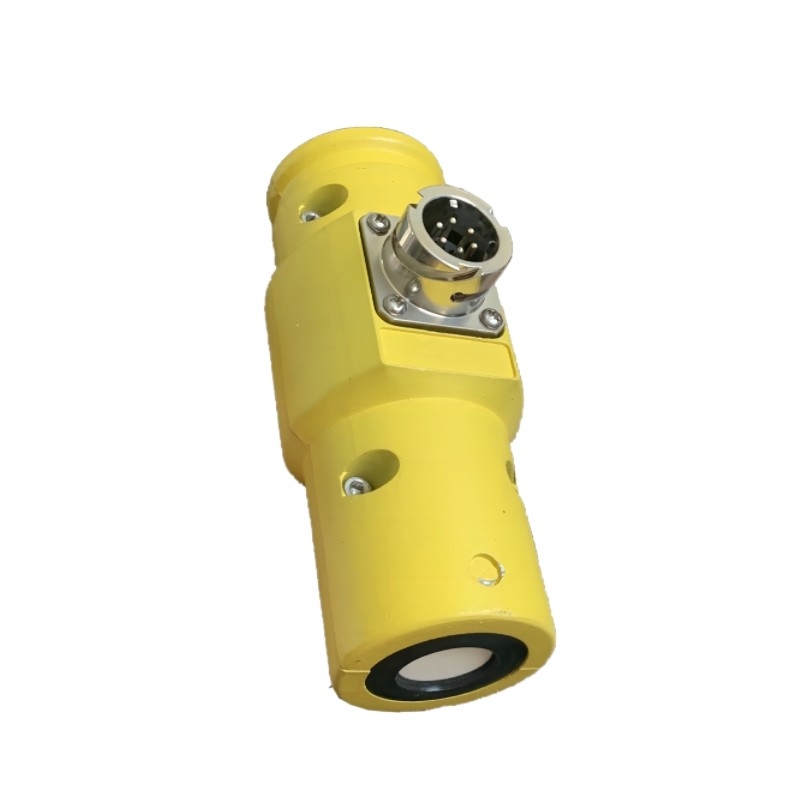

Single Probe Ultrasonic Balance Beam For Highway Maintenance

Name: Single Probe Ultrasonic Balance Beam For Highway Maintenance
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-8008
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-8008

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: wooden packing

Delivery Time: 1-3 days

Supply Ability: 20 psc per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Single Probe Ultrasonic Balance Beam, Highway Maintenance Ultrasonic Balance Beam, Highway Ultrasonic Balance Beam


Accuracy:	±0.5mm	Material:	Aluminum Alloy
Leveling Method:	Averaging	Carrying Case:	Included

Accuracy:	±0.5mm
Material:	Aluminum Alloy
Leveling Method:	Averaging
Carrying Case:	Included

Single Probe Ultrasonic Balance Beam For Highway Maintenance

Ultrasonic measurement system for accurate thickness control in highway maintenance applications, featuring averaging leveling beam technology.

Working Principle

The single probe ultrasonic balance beam emits ultrasonic signals to the ground through its ultrasonic probe and receives the reflected signals. The system calculates the distance between the probe and the ground based on the signal's round-trip time and the propagation speed of ultrasound in air.

Application Scenarios

Urban road construction: Ensures smoothness of urban roads to improve travel comfort
Highway maintenance and renovation: Precisely controls paving thickness to ensure seamless transitions between repaired and existing road surfaces

Functions and Features

Bilingual controller interface (Chinese/English) with intuitive graphics for easy operation
Parameter adjustment interface for simple configuration and optimal paver performance
Built-in short-circuit protection and automatic sensor recognition
Multiple measurement data collection with compensation rod design for accurate results
Simple, flexible design with CAN bus compatibility for integration with other CAN-based instruments

Technical Parameters

Parameter	Specification
Working voltage	10V~30VDC
Communication type	CANbus
Controller output current	5A (with over-current protection)
Controller output signal	NPN, PNP configurable
Output frequency	3HZ
Ultrasonic measurement range	25cm～100cm
Resolution	0.2mm
Ultrasonic probe frequency	200KHZ
Working temperature	-20～85℃

Construction Case
