Ultrasonic Automatic Leveling System SMC-8448 CANbus Communication

Name: Ultrasonic Automatic Leveling System SMC-8448 CANbus Communication
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-8448
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-8448

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: wooden packing

Delivery Time: 1-3 days

Supply Ability: 10 psc per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Ultrasonic Automatic Leveling System, Automatic Leveling System SMC-8448, CANbus Automatic Leveling System


Working Voltage::	10V~30V(DC)	Communication Type::	CANbus
Controller Output Current::	5A (with Over-current Protection Function)	Allowable Voltage Fluctuation::	+/-10%
Output Mode::	Switch Output: PNP/NPN, Maximum Current 3A	Proportional Output::	PNP, Maximum Current 2.5A

Working Voltage::	10V~30V(DC)
Communication Type::	CANbus
Controller Output Current::	5A (with Over-current Protection Function)
Allowable Voltage Fluctuation::	+/-10%
Output Mode::	Switch Output: PNP/NPN, Maximum Current 3A
Proportional Output::	PNP, Maximum Current 2.5A

Ultrasonic Automatic Leveling System SMC-8448 CANbus Communication

Product Overview

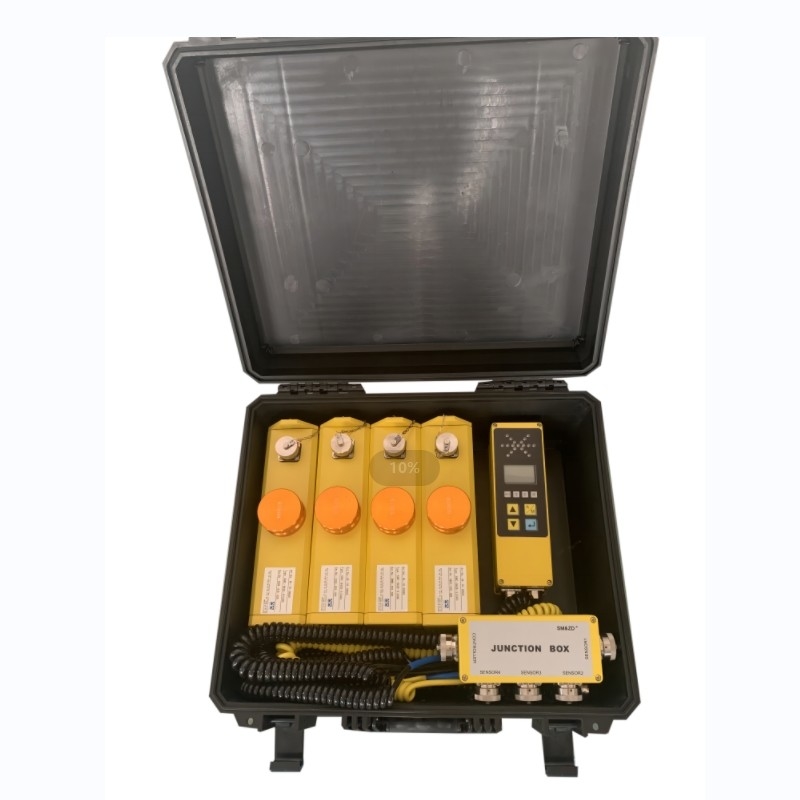

The SMC-8448 Ultrasonic Boot Balance Beam is an advanced automatic leveling system based on micro-processing technology with CAN-bus communication. Designed for challenging construction environments with strong electromagnetic interference, high temperatures, humidity, and dust, this system provides stable, flexible, and efficient control for paving equipment.

System Features

Interface with fault tolerance and overload protection to prevent damage from errors or short circuits
Unlimited system software upgrade capability
Working status indication and fault self-diagnosis function for easy troubleshooting
Automatic cylinder locking during system failures

Structural Advantages

Foldable stand for compact storage
Easy position adjustment relative to paver
Large-scale high-strength aluminum alloy square tube for optimal rigidity and lightness
Unique shock absorber design

Controller Specifications

Large color LCD screen with intuitive icon interface
Touch button design for quick operation in outdoor conditions
Digital control with CAN-bus protocol for network compatibility
Real-time data display with Chinese/Graphical interface
Complete self-diagnosis function with clear fault display
Interchangeable with imported brand products for various equipment

Operating Principle

The system measures road surfaces at multiple points using sensors, transmits data via CAN-bus to the controller, which processes measurements (including ambient temperature compensation) to determine deviation values. The controller then outputs electrical signals to control leveling cylinders, achieving automatic paving control.

Technical Parameters

Working voltage: 10V~30V(DC)

Communication type: CANbus

Controller output current: 5A (with over-current protection)

Output modes: Switch (PNP/NPN, 3A max) / Proportional (PNP, 2.5A max)

CAN interface protocol: ISO 11898-24V, 125 kBit/sec

Ultrasonic range: 20cm~100cm (0.2mm resolution)

Operating temperature: -20℃~+85℃

Protection class: IP67

Product Configuration

No.	Component	Unit	Quantity	Remarks
1	Boot controller	Only	2
2	Boot sensor	Only	8
3	Junction Box	Only	2
4	Power cable	Root	2	2m spiral wire black
5	Junction box wire	Root	2	2m helix yellow
6	Sensor line	Root	8	Black spiral wire 2 meters 6, 1.3 meters 2
7	Handle	Only	8
8	Main controller mounting plate	Individual	2
9	Junction Box Activity Card	Individual	2
10	Long hanging rod positioning card	Only	8	M10*150 screws, 8 pieces (including flat spring washer nuts)
11	Locating ring	Only	8	Contains 6 M10*150 screws
12	U-shaped sensor mounting card	Set	8	With wing nut
13	Card beam device	Only	4	M10*90 screws and nuts, 4 pieces (including flat elastic pads)
14	Hanging rod	Root	8	Contains 8 U-shaped cards
15	Aluminum alloy beam/stainless steel beam	Bag	4	M1035 screws, 16 pieces (including spring washers); M1050 screws, 8 pieces (including flat spring washers)
16	Stainless Steel Inner Bracket	Bag	2	M10*40 screws, 8 pieces (including nuts)
17	Stainless steel outer bracket	Bag	2	M10*40 screws, 8 pieces (including nuts)
18	Standard Parts	Bag	1
19	Cable tie	Root	20
20	Active splint			Configure according to customer needs
21	Welding plate			Configure according to customer needs
22	Tool	Set	1	Including utility knife, wrenches (17-19 solid, 16-18 solid, 16-18 torx, 17-19 torx), 12-inch adjustable wrench
23	Material	Share	1	Including instruction manual, labels, identification certificate, shipping list, user opinion survey form
