Product Details
Place of Origin: Jiangsu, China
Brand Name: SIMING
Certification: ISO 9001
Model Number: SMC-8008
Payment & Shipping Terms
Minimum Order Quantity: 1 psc
Packaging Details: wooden packing
Delivery Time: 1-3 days
Payment Terms: L/C, T/T
Supply Ability: 10 psc per month
Accuracy: |
±0.5mm |
Working Voltage: |
10V~30VDC |
Communication Type: |
CANbus |
Output Frequency: |
3HZ |
Accuracy: |
±0.5mm |
Working Voltage: |
10V~30VDC |
Communication Type: |
CANbus |
Output Frequency: |
3HZ |

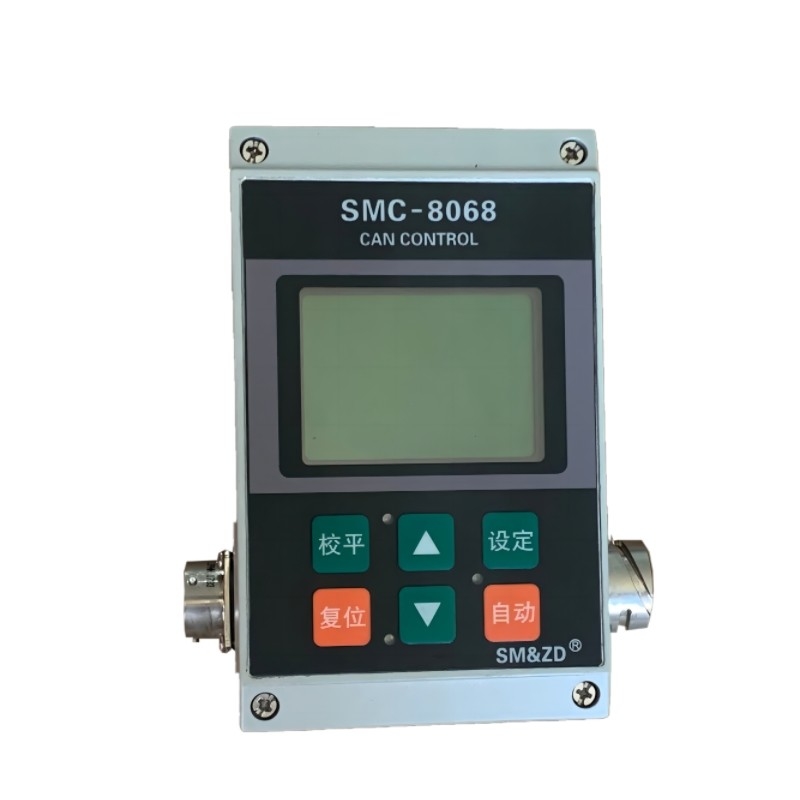

3HZ Output Frequency Averaging Leveling Beam for Precise Road Construction
Scope of application:
It is an early averaging leveling beam instrument, suitable for various imported and domestic brands of low-end paver, and used for automatic leveling control in the construction of supporting paver.
Functions and Features:
1. High precision measurement
Being able to provide more accurate distance measurement helps achieve more precise control of road surface smoothness.
2. Simple and easy to use
The structure is relatively simple, and the operation and installation are relatively convenient, reducing the learning cost of operators.
3. Strong adaptability
Can adapt to different construction environments and road conditions.
Technical Parameters:
| Working voltage | 10V~30VDC |
| Communication type | CANbus |
| Controller output current | 5A (with over-current protection function) |
| Controller output signal | NPN, PNP can be set |
| Output frequency | 3HZ |
| Ultrasonic measurement range | 25cm～100cm |
| Resolution | 0.2mm |
| Ultrasonic probe frequency | 200KHZ |
| Working temperature | -20～85℃ |
Construction case:
