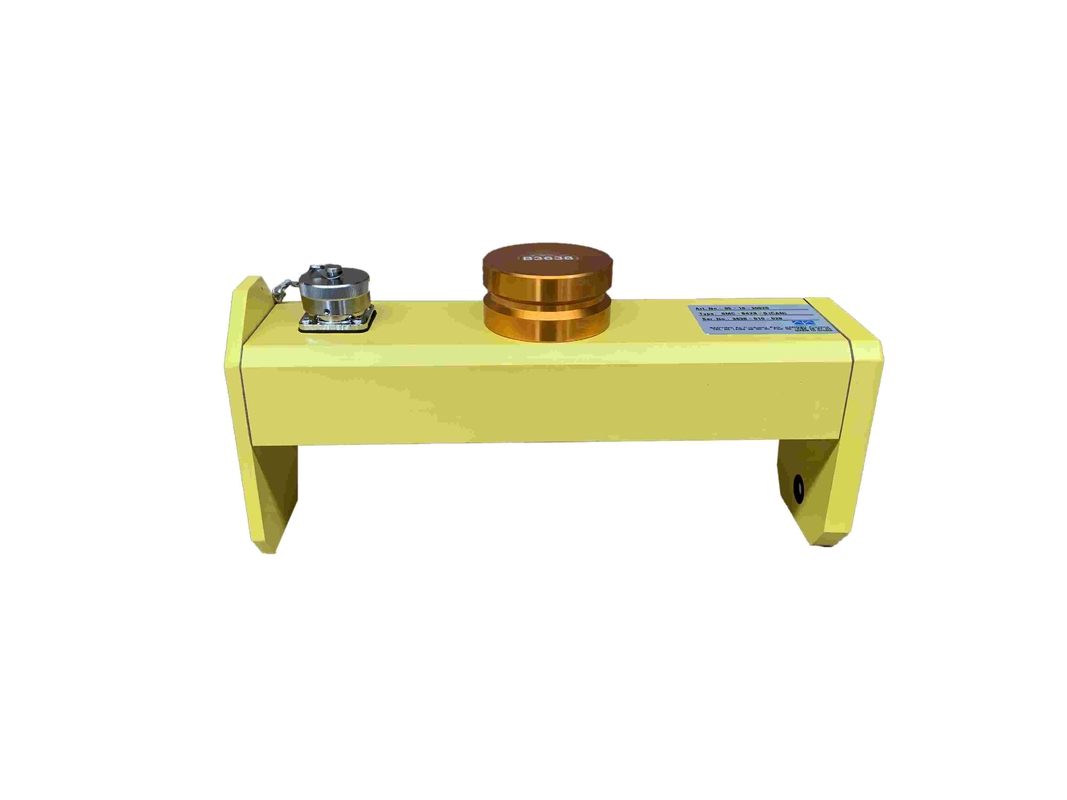

Asphalt Paver Averaging Leveling Beam Slipform Paver Ultrasonic Balance Beam

Name: Asphalt Paver Averaging Leveling Beam Slipform Paver Ultrasonic Balance Beam
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-8428
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO-9001

Model Number: SMC-8428

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Wooden+Container

Delivery Time: 1-2 days

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Asphalt Paver Averaging Leveling Beam, Slipform Paver Ultrasonic Balance Beam, Paver Ultrasonic Balance Beam


Resolution:	0.2mm	Usage:	Leveling And Alignment
Working Voltage:	10V~30V(DC)	Working Temperature Range:	-10℃~+70℃

Resolution:	0.2mm
Usage:	Leveling And Alignment
Working Voltage:	10V~30V(DC)
Working Temperature Range:	-10℃~+70℃

Asphalt Paver Averaging Leveling Beam Slipform Paver Ultrasonic Balance Beam

Customizable Averaging Leveling Beam for Pavers with Ultrasonic Probes

The ultrasonic balance beam is an important device used in asphalt pavers, which can effectively improve the flatness of the paved road surface.
Components:
It usually includes ultrasonic probes (sensors), controllers, brackets and beams, connection cables, etc. Among them, the ultrasonic probe is used to measure the distance from the road surface to the probe and transmits the data to the controller; the controller sends commands, receives and processes the data collected by the probe, and judges the working state of the paver based on the data, and then outputs the control signal to the leveling hydraulic system of the paver; the bracket and the beam are mechanical devices for installing the ultrasonic probe; the connection cable is used to connect each component for signal transmission.
Working principle:
The sensors (ultrasonic skids or probes) are combined through the internal CAN bus network to detect different positions of the road surface, intelligently screen and process the detected data, and then transmit the processed data to the controller. The controller judges the current working state of the paver accordingly and outputs the corresponding control signal to the leveling hydraulic system of the paver, thereby achieving the purpose of automatic leveling.

Technical Parameters:

Working voltage	10V~30V(DC)
Communication type	CANbus
Output current	1.5A
Short circuit protection current	2.2A
Output mode	PNP/NPN
CAN interface protocol	ISO 11898-24V, 125 kBit/sec
Output frequency	2HZ
Ultrasonic measurement range	20cm~100cm
Resolution	0.2mm
Ultrasonic probe frequency	120KHZ
Working temperature range	-10℃~+70℃
Protection class	IP67
