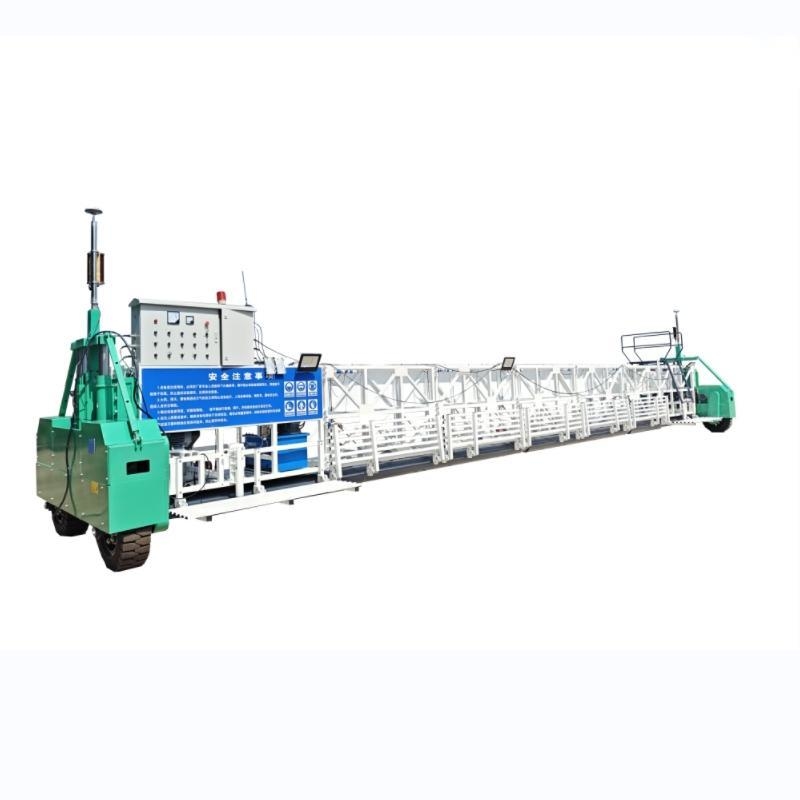

SMP-1200 Concrete Spreader Slipform Paver for Bridge Deck Paving

Product Details

Place of Origin: Jiangsu, China

Brand Name: Siming

Certification: ISO9001/CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $29,000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                concrete spreader slipform paver, bridge deck slipform paver, SMP-1200 slipform paver


Weight:	7000 Kg	Power Supply:	380V
Equipped Power:	≥28KW	Roller Drive Motor:	7.5kW
Walking Drive Motor:	1kW	Spread Width:	≤16m
Walking Speed:	0-10m/min	Paving Speed:	0-5m/min
Water Tank Capacity:	300L	Hydraulic Oil Volume:	80L
Rod Shaft Diameter:	φ219mm	Rod Shaft Speed:	240rpm
Vibration Frequency:	≥3000次/min	Display Interface:	10" Touch Color Display
Elevation Control:	Laser Automatic Positioning

Weight:	7000 Kg
Power Supply:	380V
Equipped Power:	≥28KW
Roller Drive Motor:	7.5kW
Walking Drive Motor:	1kW
Spread Width:	≤16m
Walking Speed:	0-10m/min
Paving Speed:	0-5m/min
Water Tank Capacity:	300L
Hydraulic Oil Volume:	80L
Rod Shaft Diameter:	φ219mm
Rod Shaft Speed:	240rpm
Vibration Frequency:	≥3000次/min
Display Interface:	10" Touch Color Display
Elevation Control:	Laser Automatic Positioning

SMP-1200 Concrete Spreader Slipform Paver for Bridge Deck Paving

SMP-1200 Concrete Spreader Curbstone Paver Pavers Bridge Machine

Product Specifications

Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Engine, hydraulic pump, vibrating spear
Weight	7000 kg
Warranty	1 Year
UNIQUE SELLING POINT	Low Maintenance Cost
Power Supply	380V
Equipped with power	≥28KW
Rated power of roller drive motor	7.5kW
Spread width	≤16m
Walking speed	0-10m/min
Paving Speed	0-5m/min
Warranty of core components	3 years
Condition	New
Applicable Industries	Bridge, tunnel
Marketing Type	star product

Key Features

Modular assembly mode with split composite connection for roller shaft, enabling easy installation and width adjustment
Adaptable for bridge decks of varying widths, improving equipment utilization
Tire walking mechanism for operation on bridge deck steel mesh with hydraulic elevation adjustment
Dual vibrating rollers with adjustable height and inclination for precise leveling
Integrated flushing system for simplified maintenance
Built-in lighting fixtures for nighttime and tunnel construction
High-frequency vibration pushing plate maintains concrete in optimal flowing state
Efficient compaction design ensures concrete density and leveling
Large-diameter high-speed rollers for extended wear resistance and superior finishing

Technical Parameters

Power Supply	380V
Equipped with power	≥28KW
Rated power of roller drive motor	7.5kW
Rated power of walking drive motor	1kW
Display interface	10" touch color display
Operation control	Electrical cabinet control + software integration
Paving speed	0-5m/min
Walking speed	0-10m/min
Spread width	≤16m
Water tank capacity	300L
Hydraulic oil volume	80L
Rod shaft diameter	φ219mm
Rod shaft speed	240rpm
Vibration frequency	≥3000次/min
Walking style	Four wheel drive rubber wheel walking
Elevation control method	Laser automatic positioning
Laser positioning method	Encoder automatic real-time tracking
