SMC-5500 Slipform Paver New 15000kg with 3-Year Engine Warranty

Product Details

Place of Origin: Jiangsu, China

Brand Name: Siming

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$234,000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMC-5500 slipform paver with warranty, 15000kg slipform paver new, slipform paver 3-year engine warranty


Weight:	15000 Kg	Paving Height:	0-1800mm
Paving Width:	0-2500mm	Driving Speed:	0-33 M/min
Paving Speed:	0-8m/min	Flatness:	±3 Mm/3m
Vibrator Brand:	WYCO	Vibrator Interface:	8
Vibrator Frequency:	0-167 Hz	Fuel Tank:	230L(standard)+120L(optional)
Water Tank:	500L	Engine:	Shangchai SC4H160G4
Rate Power:	118Kw/2200rpm	Emission Standard:	Phase Ⅳ
Transport Size:	700022502860 Mm

Weight:	15000 Kg
Paving Height:	0-1800mm
Paving Width:	0-2500mm
Driving Speed:	0-33 M/min
Paving Speed:	0-8m/min
Flatness:	±3 Mm/3m
Vibrator Brand:	WYCO
Vibrator Interface:	8
Vibrator Frequency:	0-167 Hz
Fuel Tank:	230L(standard)+120L(optional)
Water Tank:	500L
Engine:	Shangchai SC4H160G4
Rate Power:	118Kw/2200rpm
Emission Standard:	Phase Ⅳ
Transport Size:	700022502860 Mm

SMC-5500 Slipform Paver New 15000kg with 3-Year Engine Warranty

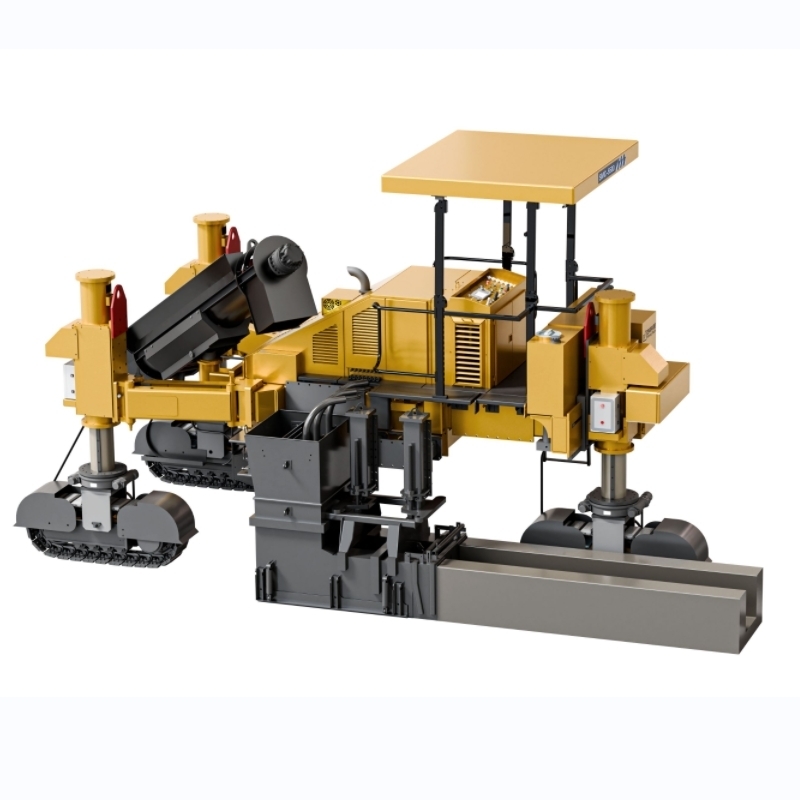

SMC-5500 Intelligent Slipform Paver

New condition core component engine with three tracks concrete spreader designed for professional construction applications.

Key Specifications

Attribute	Value
Core Components	Engine, hydraulic pump, vibrating spear
Weight	15000 kg
Warranty	1 Year (3 years for core components)
Unique Feature	Short turning radius
Paving Dimensions	Height: 0-1800mm, Width: 0-2500mm
Speed	Driving: 0-33 m/min, Paving: 0-8m/min
Applicable Industries	Highway, Tunnel roadbed, Ditch construction

Application Conditions

Designed for various construction fields including:

Highway and municipal road construction: curb, central isolation belt, anti-collision wall, slope protection, drainage ditch, cement pavement
Railway construction: retaining wall, drainage ditch
Agriculture and water conservancy: anti-seepage channels, slope protection and pavement hardening

Paving width

0-2500 mm

Paving height

0-1800mm

Flatness

±3 mm/3m

Engine

Shangchai SC4H160G4 (118Kw/2200rpm, Phase IV emission standard)

Transport dimensions

7000*2250*2860 mm

Functional Features

Optimized operator platform: Clear layout with rapid control response for efficient operation
Energy efficient system: Eco mode automatically matches optimal working state for reduced emissions
High-performance vibration: WYCo square shell vibrator with 8 vibration oil roads (expandable to 10)
Precision control: International brand servo valve for smooth column lifting and excellent flatness
Flexible track system: Adjustable crawler columns with swing arms for mold position flexibility
Multiple steering modes: Forward, crab, cooperative and spot steering for superior maneuverability
Large-angle track rotation: ±130° steering angle for efficient positioning and transitions
Smooth operation: High-speed ratio reducer with international brand hydraulic motor
Compact transport: Electrically foldable roof for economical truck transportation
