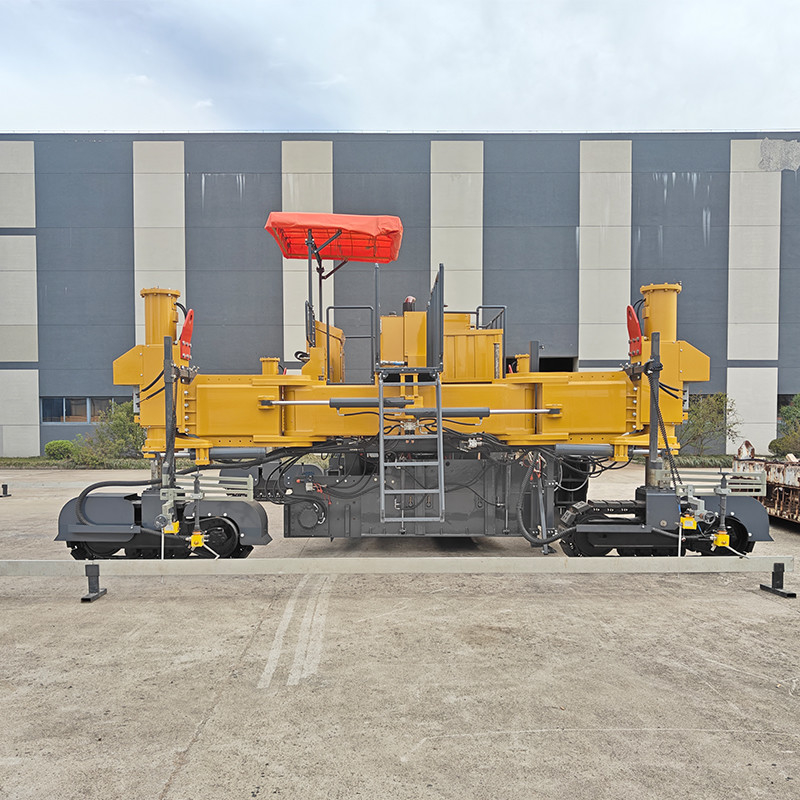

SMC - 6800 Slipform Paver: Multifunctional Cement Concrete Construction Expert

The SMC - 6800 cement concrete slipform paver is a multifunctional construction equipment independently developed for cement concrete applications. Designed for highways, high-speed railway subgrades, and agricultural irrigation channels, this machine replaces traditional processes while significantly improving construction quality and speed.

Featuring a large power reserve, full electronic control, and hydraulic power drive with four-track traveling, the paver includes automatic steering and leveling control systems. It completes material separation, vibration, paving, forming, slurry extraction, and plastering in a single operation.

Water-cooled engine with parallel-flow three-way radiator creates an efficient cooling system. Forced air-cooling enables 24-hour continuous operation without overheating, overcoming common long-term work challenges.

• Four pump load sense hydraulic system from international brands
• High-quality filters installed at pump inlet and outlet ports

Military-grade square-head hydraulic vibration core with 16 + 6-channel variable-frequency pulse vibration (0-167Hz). This precise frequency modulation maximizes aggregate compactness for superior concrete quality.

Intelligent main console features colorful graphical interface with instant fault diagnosis. CAN-bus connected sensors maintain precise steering/grade calibration for consistent construction parameters.

Four-track hydraulic system handles heavy-load construction smoothly. Load-sensing drive maintains system stability even in high temperatures and complex terrain conditions.

Dual-hydraulic auger system with stepless speed regulation transforms irregular material piles into uniform paving layers, ensuring consistent construction quality.

• High pressure washer with water gun
• Standard 400L water tank with optional four 130L tanks

• Tie Bar Inserter: Multiple inserters on both sides and middle with automatic/manual operation
• Oscillating Beam: Hydraulic driven with stepless frequency regulation to improve surface quality during stoppages
• Super Smoother: Hydraulic driven for final finish to achieve superior road rideability
• DBI Inserter: Adaptable to various dowel bar specifications with automatic/manual control modes
