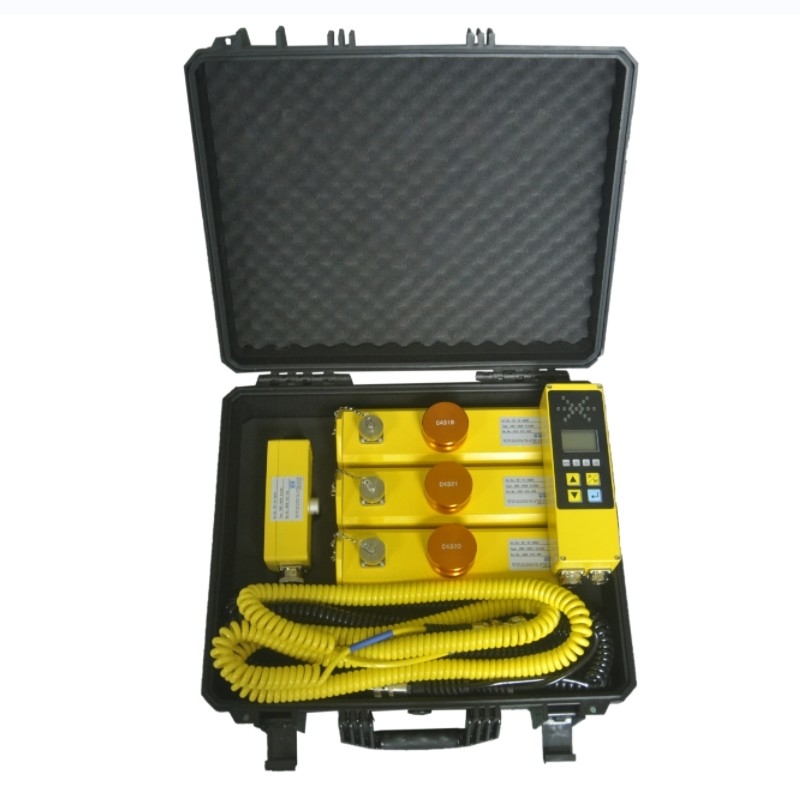

Digital Control Averaging Leveling Beam For Precise Asphalt Paving In Engineering Projects

Name: Digital Control Averaging Leveling Beam For Precise Asphalt Paving In Engineering Projects
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-8428
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SIMING

Certification: ISO9001/CE

Model Number: SMC-8428

Payment & Shipping Terms

Minimum Order Quantity: 1 psc

Packaging Details: Wooden+Container

Delivery Time: 1-2 days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Digital Control Averaging Leveling Beam, Asphalt Paving Averaging Leveling Beam, Precise Averaging Leveling Beam


Output Mode:	NPN, PNP	Carrying Case:	Included
Output Frequency:	2Hz	Warranty:	1 Year
Output Current:	1.5A	Application Field:	Highway Engineering

Output Mode:	NPN, PNP
Carrying Case:	Included
Output Frequency:	2Hz
Warranty:	1 Year
Output Current:	1.5A
Application Field:	Highway Engineering

Digital Control Averaging Leveling Beam For Precise Asphalt Paving In Engineering Projects

Digital Control Averaging Leveling Beam for Precise Asphalt Paving

This advanced digital control averaging leveling beam ensures precise asphalt paving quality for various engineering projects with demanding flatness requirements.

Applications

Highway Construction: Ensures flatness and quality for expressways, national highways, and provincial roads
Urban Roads: Enhances pavement quality for main thoroughfares, secondary arterials, and branch roads
Airport Runways: Meets strict flatness requirements for aircraft takeoff and landing areas
Large Parking Lots: Provides level surfaces for vehicle parking and movement
Industrial Park Roads: Improves durability and flatness for industrial transportation
Port Terminals: Ensures level dock operation areas for cargo handling equipment
Sports Stadium Roads: Provides optimal traffic conditions for event venues

Key Features

Chinese Controller Features

Digital control with CAN bus protocol network for sensor compatibility
LCD screen displays real-time data with Chinese/graphical interface
Self-diagnosis system with clear fault display
Fully interchangeable with imported brand products for pavers, milling machines, and graders

Ultrasonic Sensor Features

6 military-grade high-power ultrasonic probes (5 test + 1 environmental compensation)
35cm installation height from ground (50cm from newly paved surface)
Multiple probes provide averaged data for superior smoothness
Replaces G176 contact slope gauge to eliminate steel wire vibration effects

Technical Specifications

Parameter	Specification
Output Mode	NPN, PNP
Output Waveform	PWM pulse wave
Output Frequency	2Hz
Output Current	1.5A
Short Circuit Protection	2.2A
Control Load Type	Switch valve
Sensor Accuracy	2mm
Measuring Range	19-100cm
Temperature Rise	40° working deviation: 0-3mm
Operating Temperature	-10°C to +70°C
Storage Temperature	-25°C to +85°C
Voltage Range	DC 11-30V
Socket Pin Functions	A: Ground, B: Power (+24V), C: Rise, D: Fall
